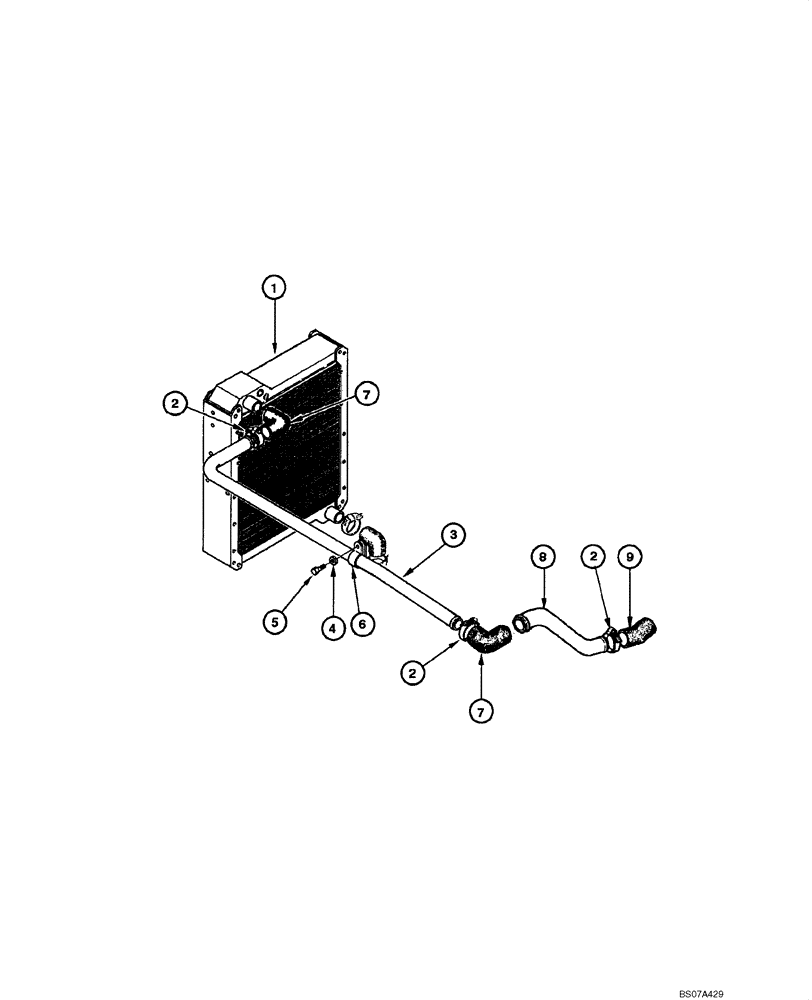

Запчасти Case 845 DHP (02.04[00]) - COOLING SYSTEM - ENGINE (02) - ENGINE

1

73164343

RADIATOR

1шт.

2

70921914

CLAMP

5шт.

3

75324846

PIPE

1шт.

4

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

2шт.

5

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

6

70928439

CLAMP

2шт.

7

75327835

RADIATOR HOSE,44.40 mm ID, 57.00 mm ID x 100.00 mm, SAE 20R4

2шт.

8

75327712

TUBE,53 mm ID, 57 mm OD, 354.5, 261 mm Length

1шт.

9

73163935

HOSE

1шт.
