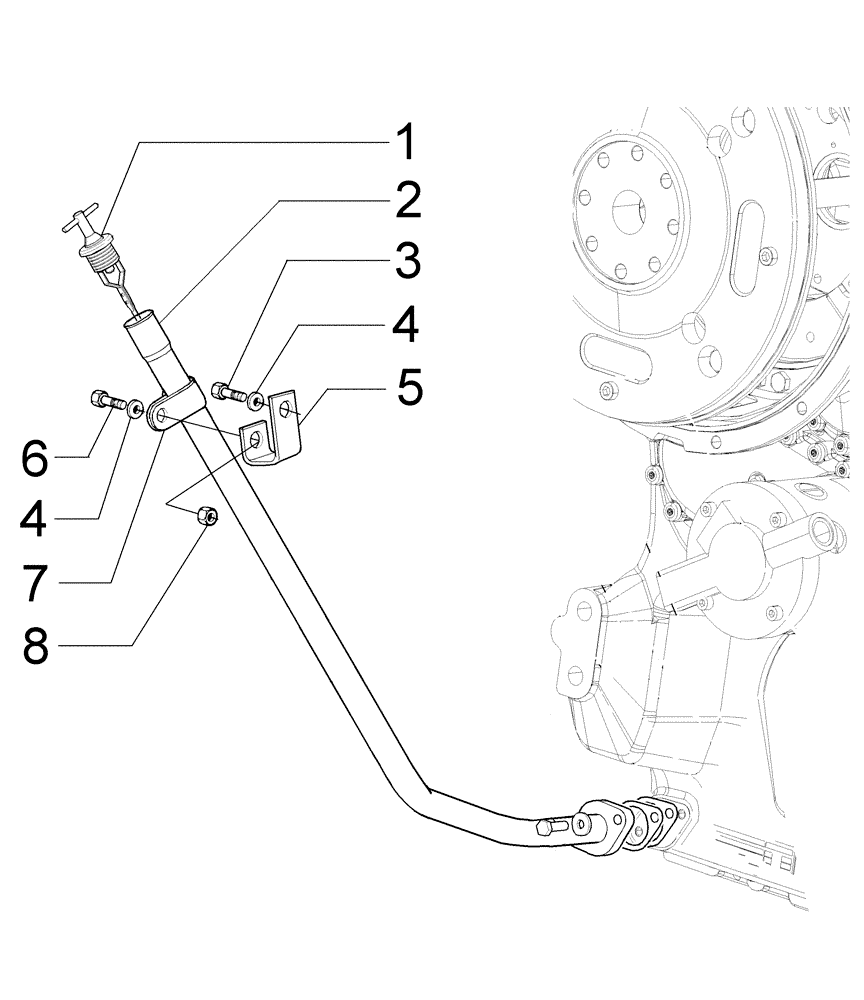

Запчасти Case 845 (06-08[02]) - TRANSMISSION - OIL DIPSTICK (06) - POWER TRAIN

1

87742441

DIPSTICK

Oil level

1шт.

2

84126499

HYD TUBE,763, 660 mm Length

1шт.

3

14274531

BOLT,Hex, M12 x 1.25 x 30mm, Cl 10.9

1шт.

4

10517073

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

5

84130338

SUPPORT

1шт.

6

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

7

70929806

COLLAR

1шт.

8

11702921

NUT,M12, Cl 10

1шт.
