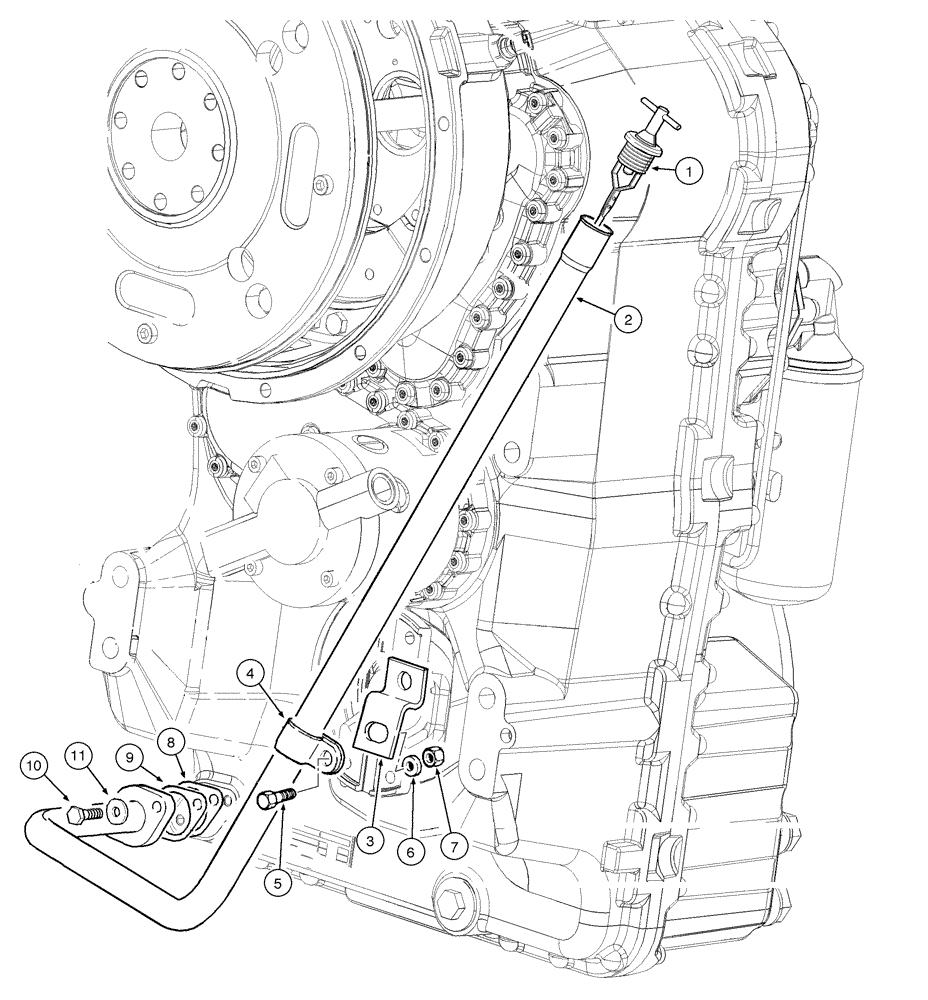

Запчасти Case 845 (06-08[01]) - TRANSMISSION - OIL DIPSTICK (Nov 21 2008 2:22PM) (06) - POWER TRAIN

1

87742441

DIPSTICK

Oil level

1шт.

2

87742439

TUBE

1шт.

3

87742440

PLATE

1шт.

4

70929806

COLLAR

1шт.

5

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

6

10517073

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

1шт.

7

11702921

NUT,M12, Cl 10

1шт.

8

E135229

FILTER SCREEN

1шт.

9

8603281

GASKET

2шт.

10

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

2шт.

11

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

2шт.
