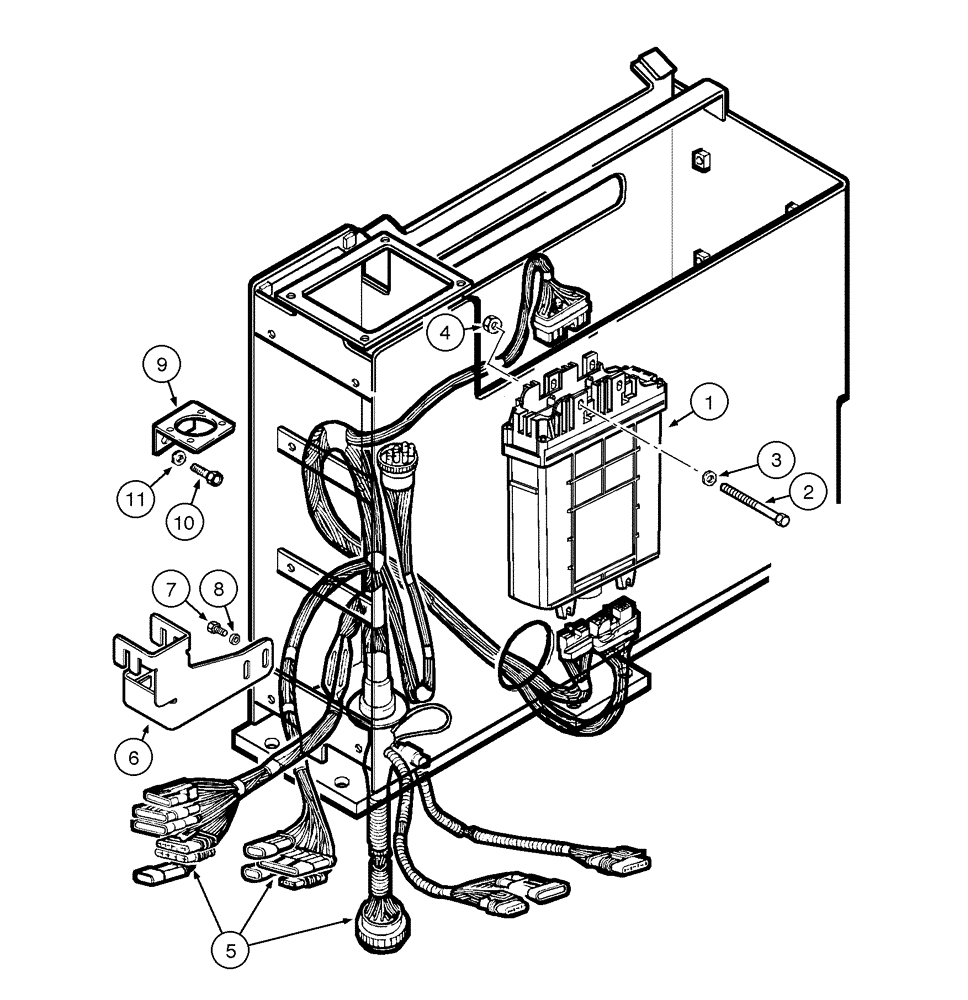

Запчасти Case 845 (04-22[01]) - ELECTRIC SYSTEM - CONTROL UNIT (04) - ELECTRICAL SYSTEMS

1

87739467

MODULE

Electronic

1шт.

1

84140985

ECU

Electronic, Start Serial: N8AF07019

1шт.

2

10903931

BOLT

4шт.

3

14496401

WASHER,M6.4 x 12.00mm x 1.60mm

6шт.

4

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

4шт.

5

87731940

HARNESS

Transmission

1шт.

6

75324944

SUPPORT

1шт.

7

12644421

WASHER,6.15mm ID x 15mm OD x 1mm Thk

2шт.

8

10902131

SCREW,Hex, M6 x 14mm, Cl 10.9, Full Thd

2шт.

9

87676365

SUPPORT

1шт.

10

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

11

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

1шт.
