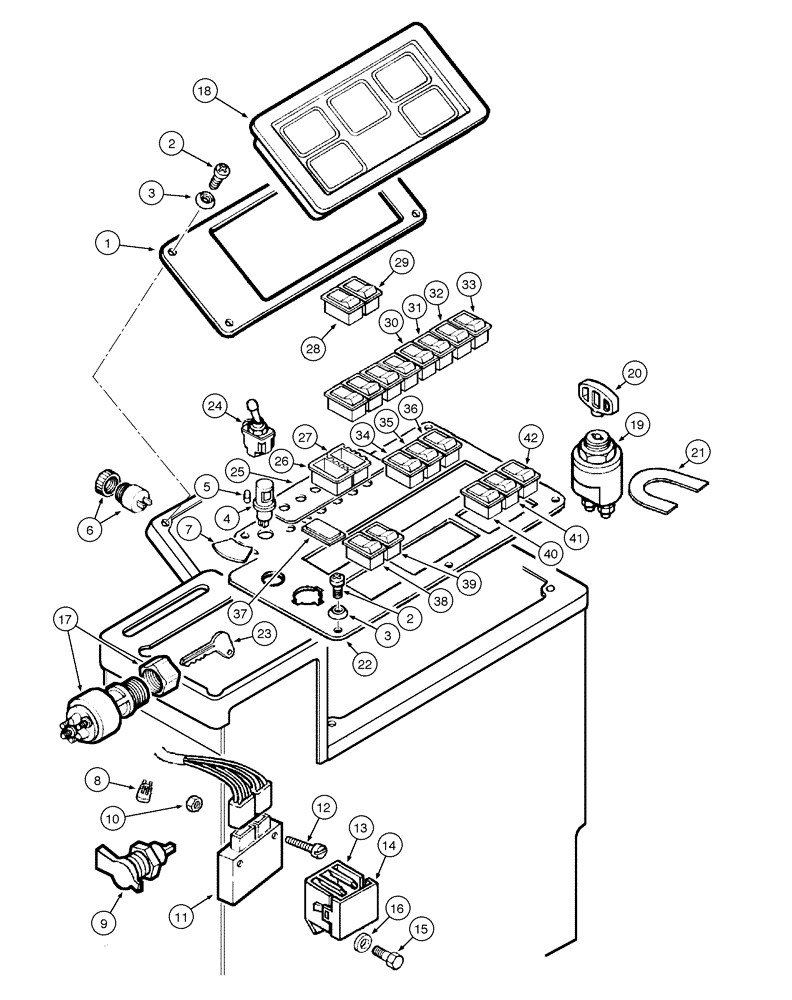

Запчасти Case 845 (04-18[01]) - ELECTRIC SYSTEM - COMMAND PANEL (04) - ELECTRICAL SYSTEMS

1

87530610

SIDE PANEL

1шт.

2

13313217

SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd

10шт.

3

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

10шт.

4

73072041

WARNING LIGHT

Panel, Includes item 5

1шт.

5

73072025

BULB

1шт.

6

75241340

HORN

1шт.

7

75324996

DECAL

1шт.

8

75326330

RESISTOR

1шт.

9

79090991

POWER SOCKET

Outlet

1шт.

10

70917479

NUT

2шт.

11

75283926

DIODE ELEMENT

1шт.

12

76021290

SCREW,#6 - 32 x 1"

2шт.

13

50001484

BRACKET

Outlet

1шт.

14

5962562

COVER

1шт.

15

10977731

BOLT,Hex, M5 x 14mm, Cl 10.9, Full Thd

1шт.

16

10516473

WASHER

1шт.

17

75225352

NEUTRAL START SWITCH

Ignition

1шт.

18

87737434

PANEL

Instruments

1шт.

19

79073031

SWITCH

Master, Includes item 20

1шт.

20

79073033

IGNITION KEY

1шт.

21

75259379

DECAL

Master switch

1шт.

22

87540679

CLAMP

1шт.

For equipment with A/C

1шт.

22

87545948

PANEL

1шт.

For equipment with cab heater

1шт.

22

87545947

PANEL

1шт.

For equipment with open cab

1шт.

23

75267445

IGNITION KEY

1шт.

24

73125891

ASSEMBLY

Saddle lock

5шт.

25

75322188

DECAL

1шт.

26

85803983

CONTACT HOUSING

8шт.

27

75251093

CONNECTING BLOCK

6шт.

28

75253173

SWITCH

Windshield front washer

1шт.

29

75284732

SWITCH

1шт.

30

75251075

WINDSHIELD WIPER SWI

Front wiper

1шт.

31

75251052

WINDSHIELD WASHER SW

Front washer

1шт.

32

75253176

WINDSHIELD WIPER SWI

Rear wiper

1шт.

33

75253177

WINDSHIELD WASHER SW

Rear washer

1шт.

34

75251081

LIGHT SWITCH

1шт.

35

75251045

LIGHT SWITCH

Cab

1шт.

36

75251067

LIGHT SWITCH

Blade

1шт.

37

5151033

PLASTIC PLUG

8шт.

38

75321122

SWITCH

A/C

1шт.

39

75321686

SWITCH

Air recirculation

1шт.

40

75284720

SWITCH

Declutch

1шт.

41

87472858

SWITCH

Lock up

1шт.

42

75284725

SWITCH

Auto/Manual

1шт.
