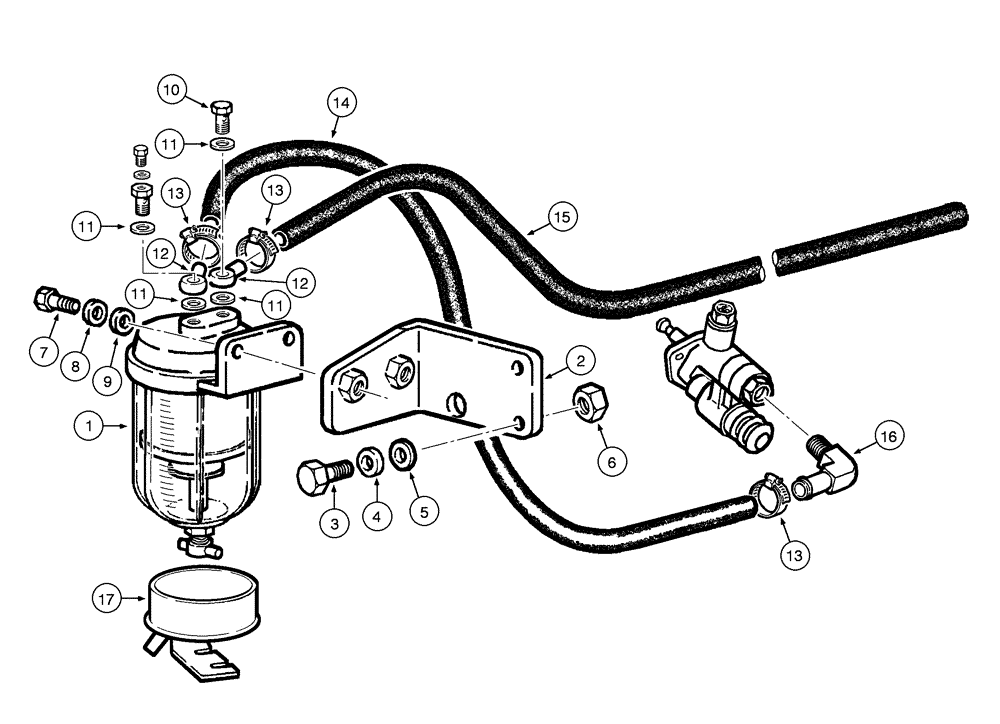

Запчасти Case 845 (03-28[01]) - IN LINE WATER SEPARATOR FILTER - MOUNTING (03) - FUEL SYSTEM

1

REF

INSTRUCTION

1шт.

Page 03-26

1шт.

2

75327607

SUPPORT

1шт.

3

11113231

BOLT,Hex, M12 x 50mm, Cl 10.9

2шт.

4

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

5

10520001

WASHER,12.2mm ID x 22mm OD x 3mm Thk

2шт.

6

11702921

NUT,M12, Cl 10

2шт.

7

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

8

10516671

LOCK WASHER

2шт.

9

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

2шт.

10

75252397

BANJO BOLT,M10 x 1.5 x 22mm

1шт.

11

70929292

WASHER

4шт.

12

79010214

HYD CONNECTOR

2шт.

13

12179490

HOSE CLIP

3шт.

14

75327634

HOSE

1шт.

15

75327661

HOSE

1шт.

16

75289705

HYD CONNECTOR

1шт.

17

75327617

RESERVOIR

1шт.
