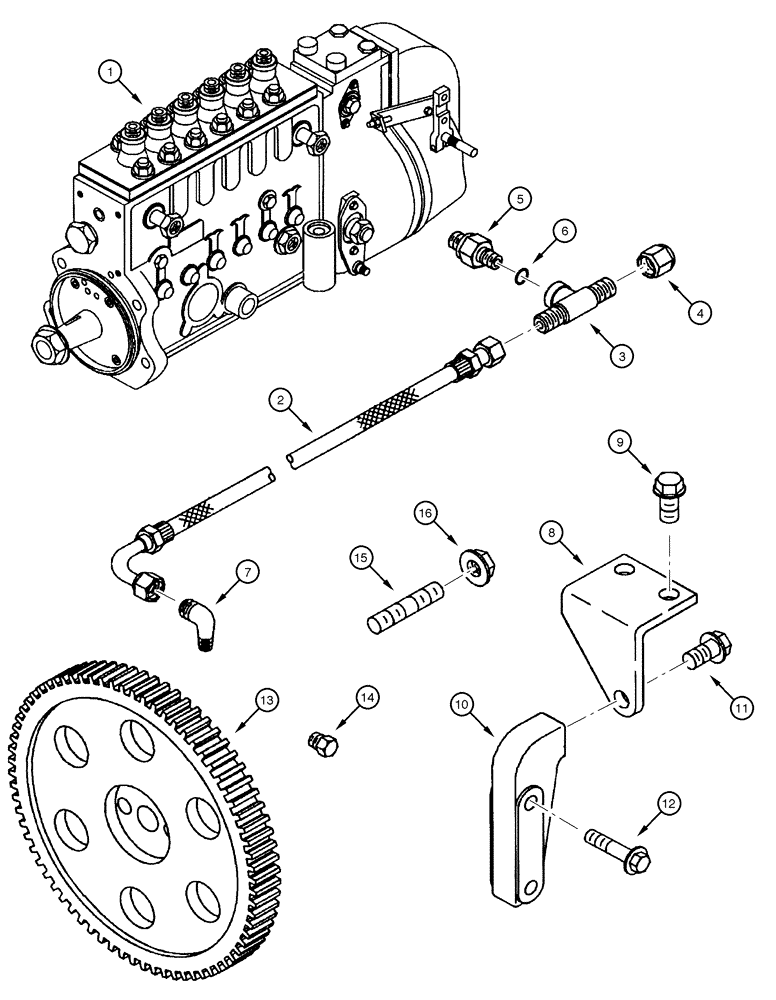

Запчасти Case 845 (03-18[01]) - FUEL INJECTON PUMP AND DRIVE (03) - FUEL SYSTEM

1

J928599

PUMP, FUEL INJECTION

PUMP, INJECTION Assy

1шт.

For 845 model

1шт.

1

J935772

PUMP

Fuel Injection Assy

1шт.

For 845 DHP Dual Power model

1шт.

2

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

3

J924346

TEE

1шт.

For 845 model

1шт.

3

J933291

TEE

1шт.

For 845 DHP Dual Power model

1шт.

4

J921556

CAP

1шт.

5

J932321

UNION

Includes item 6

1шт.

For 845 model

1шт.

6

J678925

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

Seal

1шт.

5

J941472

FITTING

Includes item 6

1шт.

For 845 DHP Dual Power model

1шт.

6

J678925

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

Seal

1шт.

7

E159220

ELBOW

1шт.

8

J863311

BRACE

Pump

1шт.

For 845 model

1шт.

8

J928898

SUPPORT

Pump

1шт.

For 845 DHP Dual Power model

1шт.

9

J093931

SCREW

2шт.

10

J863312

BRACE

Pump

1шт.

For 845 model

1шт.

10

J003580

SUPPORT

Pump

1шт.

For 845 DHP Dual Power model

1шт.

11

J903990

BOLT,Hex Flg, M10 x 20, 10.9

1шт.

12

J900632

FLANGE BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

2шт.

13

J934636

PINION

1шт.

For 845 model

1шт.

13

J931382

GEAR

1шт.

For 845 DHP Dual Power model

1шт.

14

J906619

PLUG,1/8" - 27

1шт.

15

J907978

STUD

4шт.

16

J902662

FLANGE NUT

4шт.

17

J935032

SEAL

1шт.

Not shown

1шт.
