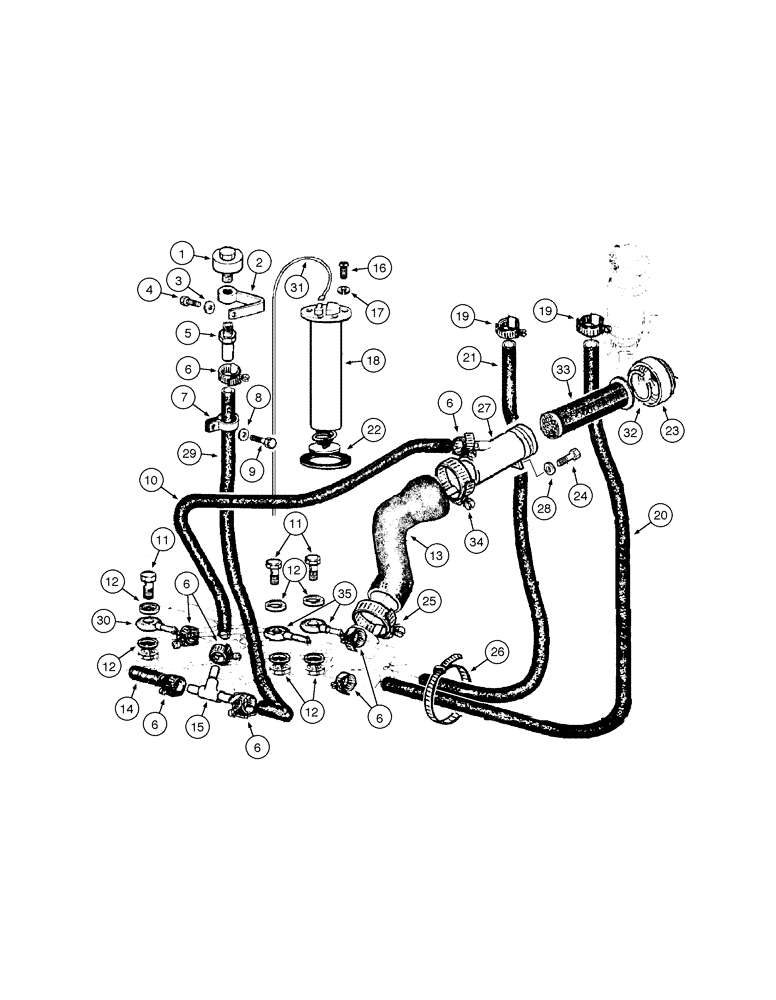

Запчасти Case 845 (03-10[01]) - FUEL LINE (03) - FUEL SYSTEM

1

70050748

BREATHER

1шт.

2

73153453

SUPPORT

1шт.

3

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

2шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

5

73153451

RIGID TUBE

1шт.

6

70921910

CLAMP

6шт.

7

70926049

CONNECTING BLOCK

1шт.

8

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

2шт.

9

11103031

BOLT,Hex, M10 x 18, 10.9, Full Thd

3шт.

10

73162469

HOSE

Flexible

1шт.

11

10184317

BANJO BOLT,M14 x 1.5 x 27mm

3шт.

12

10279985

SEAL

Seal

6шт.

13

75321358

FUEL HOSE,76.30 mm ID, 105.30 mm ID x 426.30 mm

Flexible

1шт.

14

73153814

HOSE

Flexible

1шт.

15

73153450

HYD CONNECTOR

1шт.

16

13274211

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

5шт.

17

11195479

LOCK WASHER

5шт.

18

75251139

FLOAT

Level, Includes item 19

1шт.

19

79084753

HOSE CLIP,M10-18

1шт.

20

75326414

FUEL HOSE,9.52mm ID x 2100mm L

Flexible

1шт.

21

87361282

FUEL HOSE,9.53 mm ID x 1600.00 mm, SAE J30, SAE 30R2 Type 1

Flexible

1шт.

22

75288871

GASKET

1шт.

23

87362264

FILLER CAP,Vented

1шт.

24

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

1шт.

25

70922200

CLAMP

4шт.

26

75201642

CLAMP

2шт.

27

75321359

TUBE

Filling

1шт.

28

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

1шт.

29

73153454

HOSE

Flexible

1шт.

30

75252238

HYD CONNECTOR

1шт.

31

75253139

ELECTRIC CABLE

Fuel reservoir

1шт.

32

4971843

CIRCLIP

1шт.

33

75325672

FILTER SCREEN

Fuel

1шт.

34

70930425

CLAMP,4.31" - 4.62"

1шт.

35

79010214

HYD CONNECTOR

2шт.
