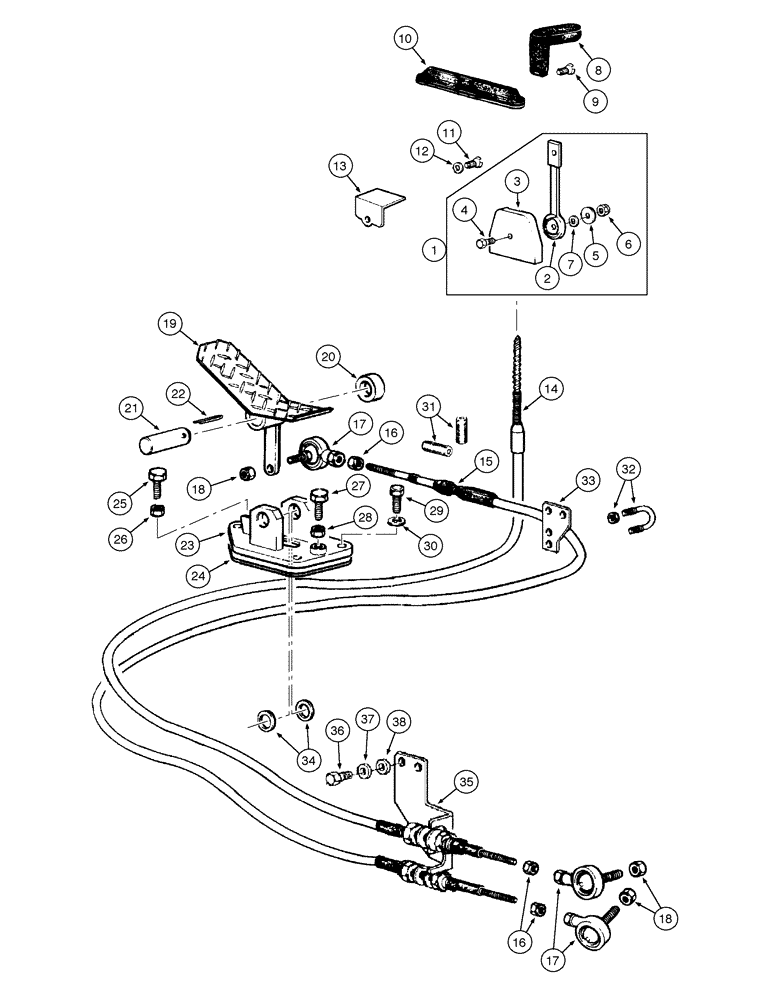

Запчасти Case 845 (03-02[01]) - THROTTLE PEDAL - LINKS (03) - FUEL SYSTEM

1

75264203

LEVER

Throtle Assy, Includes items 2 - 7

1шт.

2

75264204

LEVER

1шт.

3

75264205

SUPPORT

1шт.

4

10902631

BOLT,Hex, M6 x 25mm, Cl 10.9

1шт.

5

75264206

COVER

1шт.

6

12575421

NUT

1шт.

7

12601570

WAVE WASHER

1шт.

8

82002692

KNOB

1шт.

9

13275811

SCREW,Phil Pan Hd, M6 x 8mm

1шт.

10

85803380

BOOT

1шт.

11

10384511

SCREW,Slotted Countersunk, M5 x 30mm

4шт.

12

70928190

WASHER

4шт.

13

75323478

PLATE

1шт.

14

75251274

THROTTLE CONTROL

1шт.

15

75251275

THROTTLE CONTROL

1шт.

16

70911040

NUT

3шт.

17

70686384

BALL JOINT,1/4" - 28 x 1-1/3"

3шт.

18

70916590

NUT

3шт.

19

75256466

PEDAL

Includes item 20

1шт.

20

73125852

NEEDLE BEARING

2шт.

21

73162359

AXLE,19.05mm OD x 64mm L

1шт.

22

70904002

COTTER PIN,1/8" x 2"

1шт.

23

75249975

SUPPORT

1шт.

24

75321578

RUBBER PEDAL PAD

1шт.

25

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

26

16100821

NUT,M8, Cl 10

1шт.

27

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

1шт.

28

11702921

NUT,M12, Cl 10

1шт.

29

10903031

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

30

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

3шт.

31

73160779

SLEEVE

2шт.

32

75244191

CLAMP

1шт.

33

75326910

SUPPORT

1шт.

34

73121925

THRUST WASHER,19.05mm ID x 31.75mm OD x 0.81mm Thk

2шт.

35

75326938

SUPPORT

1шт.

36

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

37

10516671

LOCK WASHER

4шт.

38

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.
