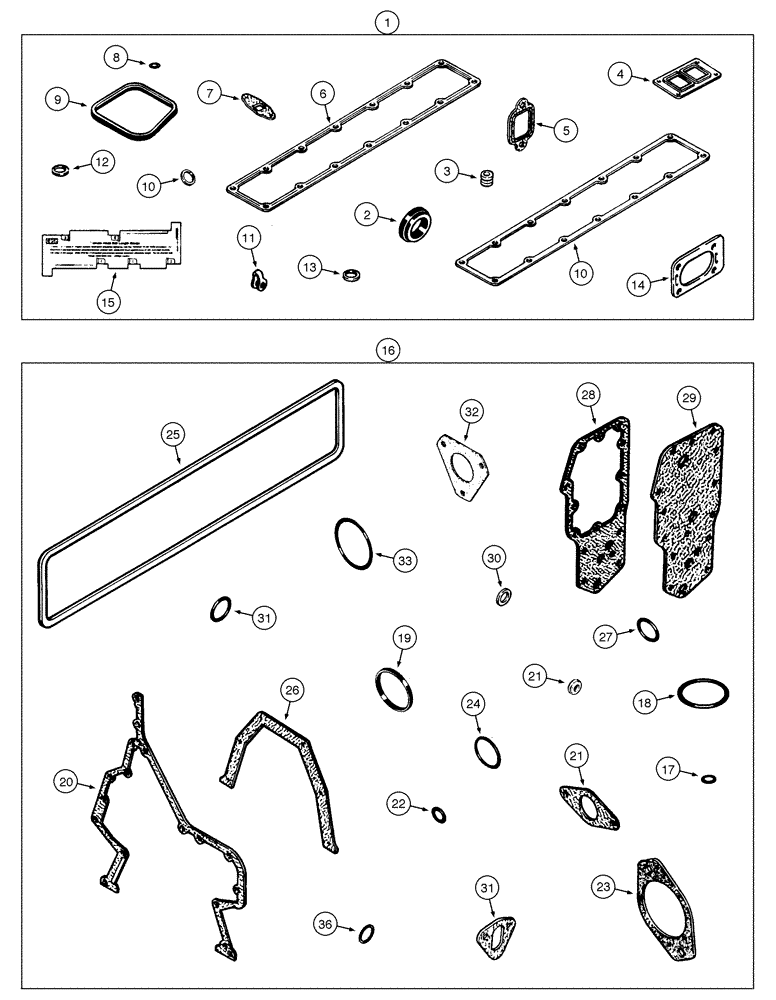

Запчасти Case 845 (02-50[01]) - GASKET SETS - CYLINDER HEAD AND BLOCK (02) - ENGINE

1

148608A1

ENGINE OVERHAUL KIT

Gasket (STD)

1шт.

For 845 model

1шт.

1

148605A1

ENGINE OVERHAUL KIT

Gasket (0,25)

1шт.

For 845 model

1шт.

1

148606A1

ENGINE OVERHAUL KIT

Gasket (0,50), Includes items 2 - 15

1шт.

For 845 model

1шт.

2

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

Thermostat

1шт.

3

J921640

SEAL

Intake/exhasut valves

12шт.

4

J901356

GASKET,0.5mm Thk

Turbocharger

1шт.

5

J927154

GASKET,0.38mm Thk

Exhasut manifold

6шт.

6

J283570

GASKET

Head (STD)

1шт.

7

J931350

GASKET

Oil tube

1шт.

8

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

6шт.

9

J930906

GASKET

6шт.

10

J938152

MANIFOLD GASKET

Intake manifold

1шт.

11

J903380

SEAL

Fuel

6шт.

12

J906659

SEAL

(7mm)

6шт.

13

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

Injector body

6шт.

14

J914856

GASKET,1.02mm Thk

Connector intake

1шт.

15

J823921

GAUGE

1шт.

16

148607A1

ENGINE OVERHAUL KIT

Gasket block, Includes items 17 - 33

1шт.

17

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

SEALRING Filter

1шт.

18

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

SEALRING Filter

1шт.

19

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

Connector

1шт.

20

J931351

GASKET

Housing

1шт.

21

J928759

SEALING WASHER

6шт.

22

J913994

O-RING

1шт.

23

J929751

GASKET

Power take-off

1шт.

24

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

Water pump

1шт.

25

J284623

GASKET

1шт.

26

J928493

GASKET

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

Water inlet

1шт.

28

J942914

GASKET

Oil cooler

1шт.

29

J942915

GASKET

Filter

1шт.

30

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

31

J923054

GASKET

Fuel pump

1шт.

32

J914389

GASKET

Injection pump

1шт.

33

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING Housing

1шт.
