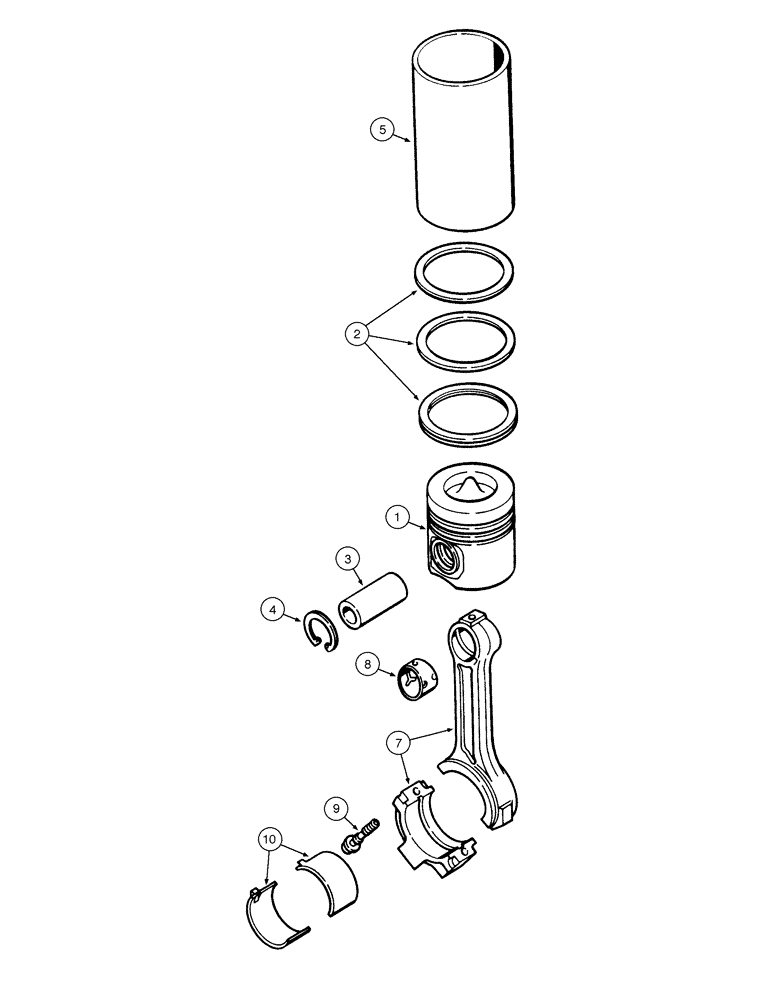

Запчасти Case 845 (02-48[01]) - PISTONS AND CONNECTING RODS (02) - ENGINE

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

STD, Includes items 1 - 4

6шт.

For 845 model

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

J802750

PISTON RING SET

1шт.

3

J934047

PIN,40mm OD x 82.68mm L

1шт.

4

J920691

SPECIAL RING

2шт.

J802764

PISTON & RINGS KIT

0.5mm, Includes items 1 - 4

6шт.

For 845 model

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

J802750

PISTON RING SET

1шт.

3

J934047

PIN,40mm OD x 82.68mm L

1шт.

4

J901706

RING

2шт.

J802765

PISTON & RINGS KIT

1.0mm, Includes items 1 - 4

6шт.

For 845 model

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

J802750

PISTON RING SET

1шт.

3

J934047

PIN,40mm OD x 82.68mm L

1шт.

4

J901706

RING

2шт.

J802757

KIT

Piston STD, Includes items 1 - 4

6шт.

For 845 DHP Dual Power model

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

J802750

PISTON RING SET

1шт.

3

J934047

PIN,40mm OD x 82.68mm L

1шт.

4

J920691

SPECIAL RING

2шт.

J802758

KIT

Piston 0.5mm, Includes items 1 - 4

6шт.

For 845 DHP Dual Power model

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

J802750

PISTON RING SET

1шт.

3

J934047

PIN,40mm OD x 82.68mm L

1шт.

4

J920691

SPECIAL RING

2шт.

J802758

KIT

Piston 1.0mm, Includes items 1 - 4

6шт.

For 845 DHP Dual Power model

1шт.

1

NSS

NOT SOLD SEPARAT

PISTON

1шт.

2

J802750

PISTON RING SET

1шт.

3

J934047

PIN,40mm OD x 82.68mm L

1шт.

4

J901706

RING

2шт.

J802759

KIT

Includes items 1 - 4

6шт.

For 845 DHP Dual Power model

1шт.

1

NSS

NOT SOLD SEPARAT

1шт.

2

J802750

PISTON RING SET

1шт.

3

J934047

PIN,40mm OD x 82.68mm L

1шт.

4

J901706

RING

2шт.

5

J904166

SLEEVE

1шт.

J942581

ROD, CONNECTING

Assy, Includes items 7, 8, 9

6шт.

For 845 model

1шт.

84145405R

REMAN-CONNECTING ROD

845 TIER I ASN N8AF07000, Reman For New P/N J942581

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

1шт.

7

NSS

NOT SOLD SEPARAT

CONNECTING-ROD

1шт.

8

J941476

BUSHING

1шт.

9

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

2шт.

J971212

CONNECTING ROD

Connecting-rod Assy

6шт.

For 845 DHP Dual Power model

1шт.

7

NSS

NOT SOLD SEPARAT

CONNECTING-ROD

1шт.

8

J891178

BUSHING

1шт.

9

J891179

SCREW

1шт.

10

J901170

BEARING SET

STD

12шт.

For 845 model

1шт.

10

J901171

BEARING SET

0.25mm

1шт.

For 845 model

1шт.

10

J901172

BEARING SET

0.50mm

1шт.

For 845 model

1шт.

10

J901173

BEARING SET

0.75mm

1шт.

For 845 model

1шт.

10

J901174

BEARING SET

1.0mm

1шт.

For 845 model

1шт.

10

J967060

BEARING HALF

STD

12шт.

For 845 DHP Dual Power model

1шт.

10

J967061

BEARING HALF

0.25mm

1шт.

For 845 DHP Dual Power model

1шт.

10

J967062

BEARING HALF

0.50mm

1шт.

For 845 DHP Dual Power model

1шт.

10

J967063

BEARING HALF

0.75mm

1шт.

For 845 DHP Dual Power model

1шт.

10

J967064

BEARING HALF

1.0mm

1шт.

For 845 DHP Dual Power model

1шт.
