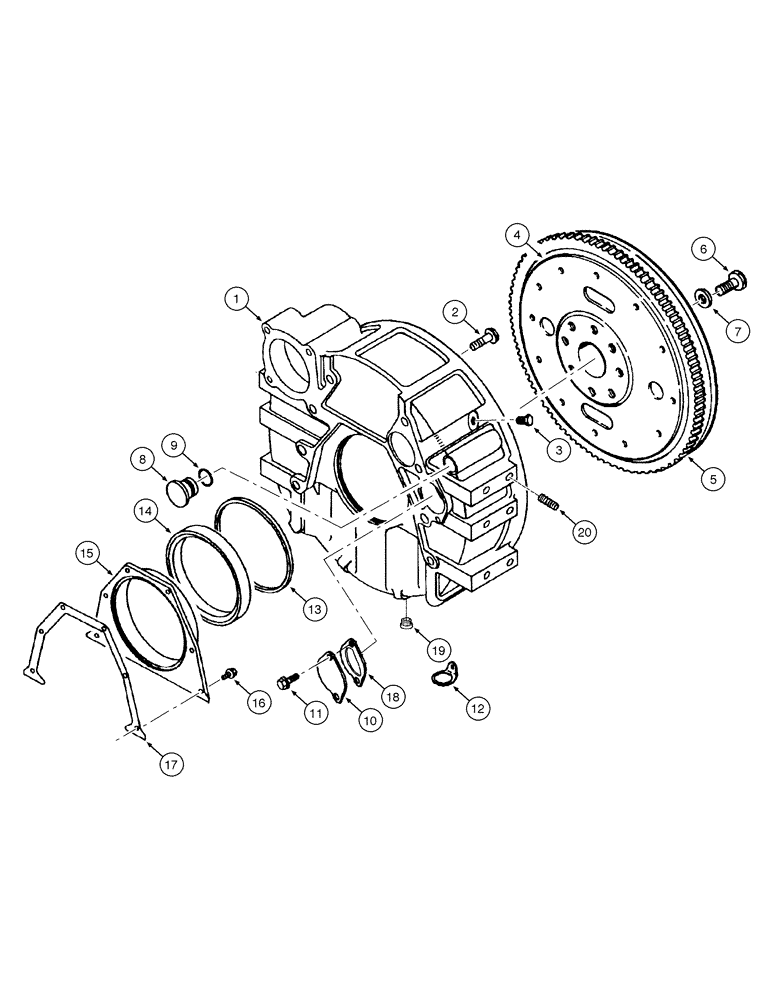

Запчасти Case 845 (02-46[01]) - FLYWHEEL HOUSING (02) - ENGINE

1

J937426

HOUSING

Flywheel

1шт.

2

J920447

FLANGE BOLT,M12 x 40mm, Cl 10.9

8шт.

3

J904181

PLUG

3/4NPT

1шт.

4

71103269

ENGINE FLYWHEEL

FLYWHEEL, Includes item 5

1шт.

5

J905427

GEAR

1шт.

5

84286587

FLYWHEEL

, Start Serial: N9AF07120

1шт.

6

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

7

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

8

J910248

PLUG

1шт.

9

J910260

O-RING

1шт.

10

75287984

COVER

1шт.

11

J912072

SELF-TAP SCREW

2шт.

12

J928989

CLIP

1шт.

13

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

14

87590147

SEAL

1шт.

15

J936895

COVER

1шт.

16

J913638

FLANGE BOLT,Hex, M6 x 15mm, Cl 8.8, Full Thd

6шт.

17

J938159

GASKET

1шт.

18

75312122

GASKET,0.86mm Thk

1шт.

19

76107131

PLUG

1шт.

20

71102485

SCREW

4шт.
