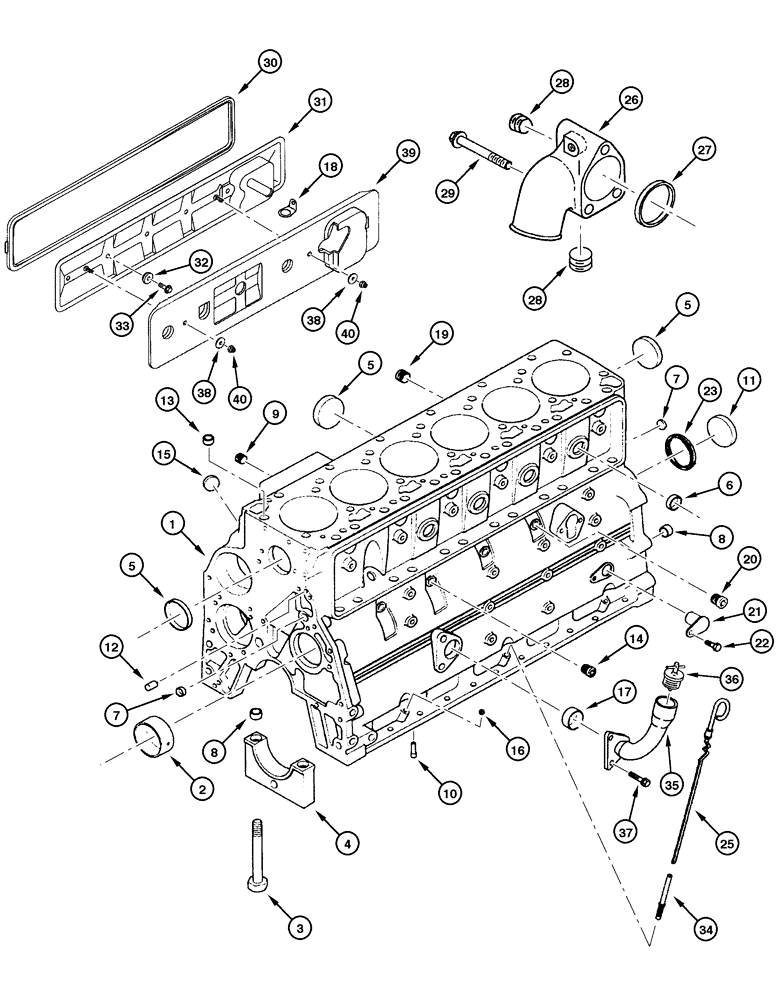

Запчасти Case 845 (02-42[01]) - CYLINDER BLOCK (02) - ENGINE

1

J935936

CYLINDER BLOCK

Assy

1шт.

For 845 model

1шт.

1

J935943

CYLINDER BLOCK

Assy, Includes items 2 - 8

1шт.

For 845 DHP Dual Power model

1шт.

2

J940059

BUSHING,54mm ID x 59.38mm OD x 25.4mm L

1шт.

3

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

16шт.

4

J936791

BEARING CAP

7шт.

5

J922072

PLUG

Expansion

5шт.

6

J914035

HOLE PLUG BUTTON

Expansion

4шт.

7

J900956

PLUG

Expansion

3шт.

8

J900068

BEARING WASHER

14шт.

J933220

PACKAGE,SERVICE

Rings, Includes items 9 - 17

1шт.

9

J902343

DOWEL

1шт.

10

J937214

NOZZLE CAP

6шт.

11

J900687

PLUG

1шт.

12

J900257

PIN,10.01mm OD x 16mm L

2шт.

13

E156611

PLUG

1/2NPT

1шт.

14

148572A1

PLUG

M10x1

2шт.

15

J920706

PLUG

1шт.

16

J900955

PLUG

Seal

3шт.

17

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

18

J923015

STAPLE

1шт.

19

148573A1

PLUG

3/4NPT

1шт.

20

148574A1

PLUG

M14x1.5

1шт.

21

J932296

PLUG

1шт.

22

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

1шт.

23

J926047

O-RING,0.07" Thk x 2.239" ID

1шт.

25

J357057

PUSH ROD

Dipstick level

1шт.

26

J934877

HYD CONNECTOR

Manifold water

1шт.

27

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

1шт.

28

A77429

PLUG

2шт.

29

J901757

FLANGE BOLT,Hex, M10 x 75mm, Cl 10.9

3шт.

30

J284623

GASKET

1шт.

31

J927916

COVER

1шт.

32

J928759

SEALING WASHER

4шт.

33

J900629

FLANGE BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

34

J357073

TUBE

1шт.

35

J914762

TUBE,119.9, 147.3 mm L

Filling

1шт.

36

149908A1

GASKET

1шт.

37

J901249

FLANGE BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

38

J910960

WASHER

2шт.

39

J924606

COVER

Insulator

1шт.

40

J910959

NUT

2шт.
