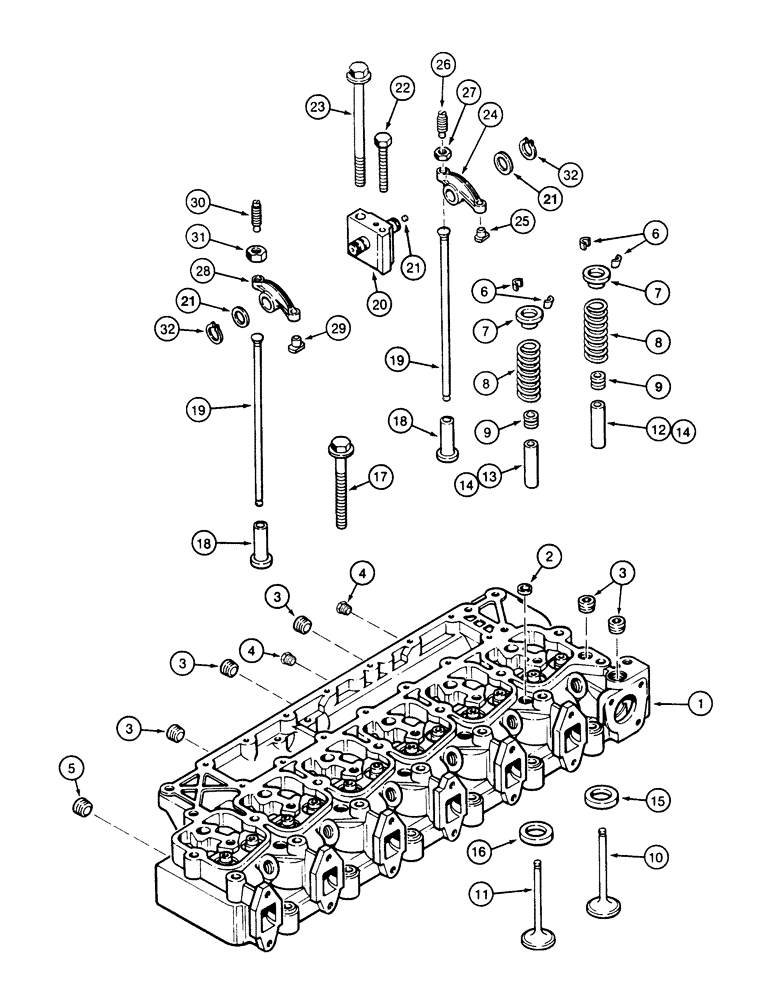

Запчасти Case 845 (02-38[01]) - CYLINDER HEAD - ASSEMBLY (02) - ENGINE

J938656

CYLINDER HEAD

Assy, Includes items 1 - 11

1шт.

1

J934746

HEAD (CYLINDER)

W/valves, Includes items 2 - 11

1шт.

For 845 model

1шт.

2

A77783

PLUG

5шт.

3

J008468

PLUG

5шт.

4

J906619

PLUG,1/8" - 27

2шт.

5

J008469

PLUG

1шт.

6

CASJ900250

RETAINER

24шт.

7

J935038

RETAINER

12шт.

8

J926700

VALVE SPRING

12шт.

9

J921640

SEAL

Intake/exhaust

12шт.

10

J920867

VALVE

Intake

6шт.

11

J920868

VALVE

Exhaust

6шт.

1

J967458

HEADLINER

W/valves, Includes items 2 - 11

1шт.

For 845 DHP Dual Power model

1шт.

2

A77783

PLUG

5шт.

3

J008468

PLUG

5шт.

4

J906619

PLUG,1/8" - 27

2шт.

5

J008469

PLUG

1шт.

6

CASJ900250

RETAINER

24шт.

7

J957913

TRAVEL LIMITER

12шт.

8

J932453

SPRING

12шт.

9

J957912

RUBBER SEAL

Intake/exhaust

12шт.

10

J802355

STD INLET VALVE

STD ENGINE INLET VALVE Intake

6шт.

11

J802356

ENGINE OVERHAUL KIT

Exhaust

6шт.

12

J904408

GUIDE

Intake (60.50mm)

6шт.

13

J904409

GUIDE

Exhaust (51.75mm)

6шт.

14

J906206

GUIDE

Intake/exhaust

12шт.

15

J906854

SEAT, VALVE

Intake

6шт.

16

J904105

SEAT, VALVE

Exhaust

6шт.

17

J920779

BOLT,Flng, M12 x 1.75 x 70mm, Cl 12.9

70mm

6шт.

17

J920780

BOLT,Flng, M12 x 1.75 x 120mm, Cl 12.9

120 mm

14шт.

18

J931623

TAPPET

Valve

12шт.

19

J284377

PUSH ROD

Rocker arm

12шт.

20

J934920

LEVER

and shaft Assy

6шт.

21

J900245

WASHER

12шт.

22

813-8075

BOLT,Hex, M8 x 1.25 x 75mm, Cl 8.8

6шт.

23

J920781

BOLT,Flng, M12 x 1.75 x 180mm, Cl 12.9

6шт.

24

J910811

ROCKER

Intake Assy, Includes items 25, 26, 27

6шт.

25

NSS

NOT SOLD SEPARAT

INSERT

1шт.

26

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

1шт.

27

J927692

NUT

1шт.

28

J910810

ROCKER

Exhaust Assy, Includes items 29, 30, 31

6шт.

29

NSS

NOT SOLD SEPARAT

INSERT

1шт.

30

J934086

ADJUSTMENT SCREW,3/8" - 24 x 29.85mm

1шт.

31

J927692

NUT

1шт.

32

J900242

SNAP RING

12шт.
