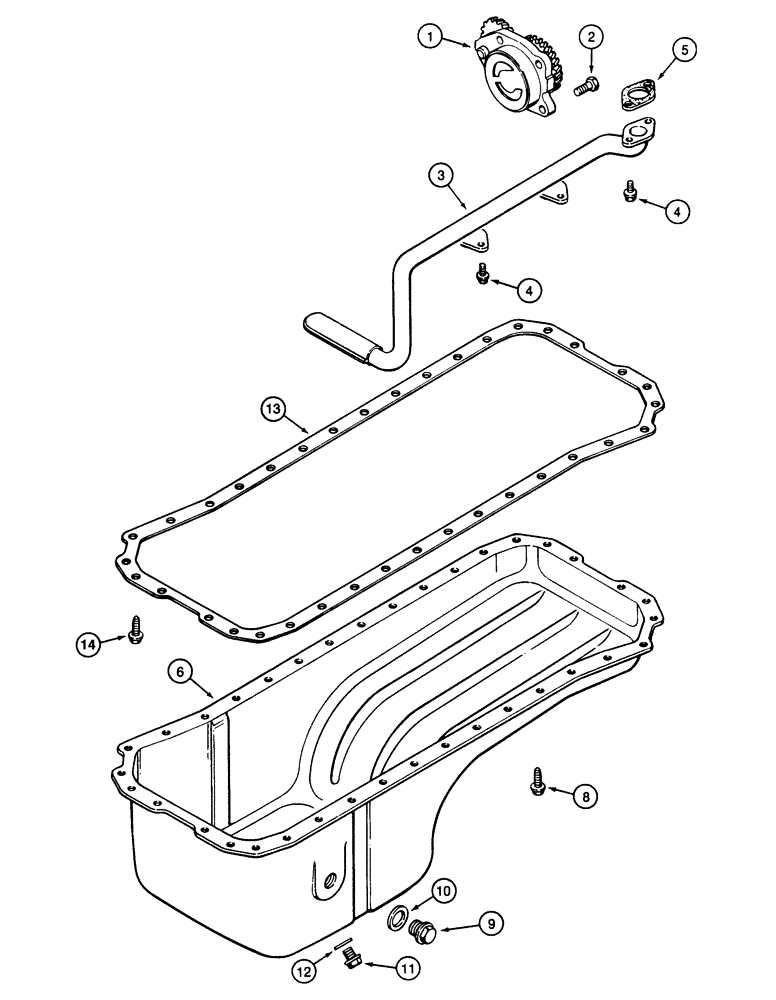

Запчасти Case 845 (02-34[01]) - LUBRICATING OIL PUMP AND PAN (02) - ENGINE

1

J937404

PUMP, ENGINE OIL

1шт.

2

J900677

BOLT,Hex

4шт.

3

J921992

TUBE,25.4 mm OD x 359, 234 mm L

1шт.

4

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

4шт.

5

J938157

GASKET,1.2mm Thk

1шт.

6

J915703

PAN, ENGINE OIL

PAN, OIL

1шт.

8

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

36шт.

9

J924148

PLUG,M22 x 1.5

1шт.

10

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

11

J924147

PLUG,M18 x 1.5

Drain

1шт.

12

J920773

SEALING WASHER

1шт.

13

J937072

OIL PAN GASKET SET

1шт.

For 845 model

1шт.

13

J959052

GASKET

1шт.

For 845 DHP Dual Power model

1шт.

17

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

2шт.
