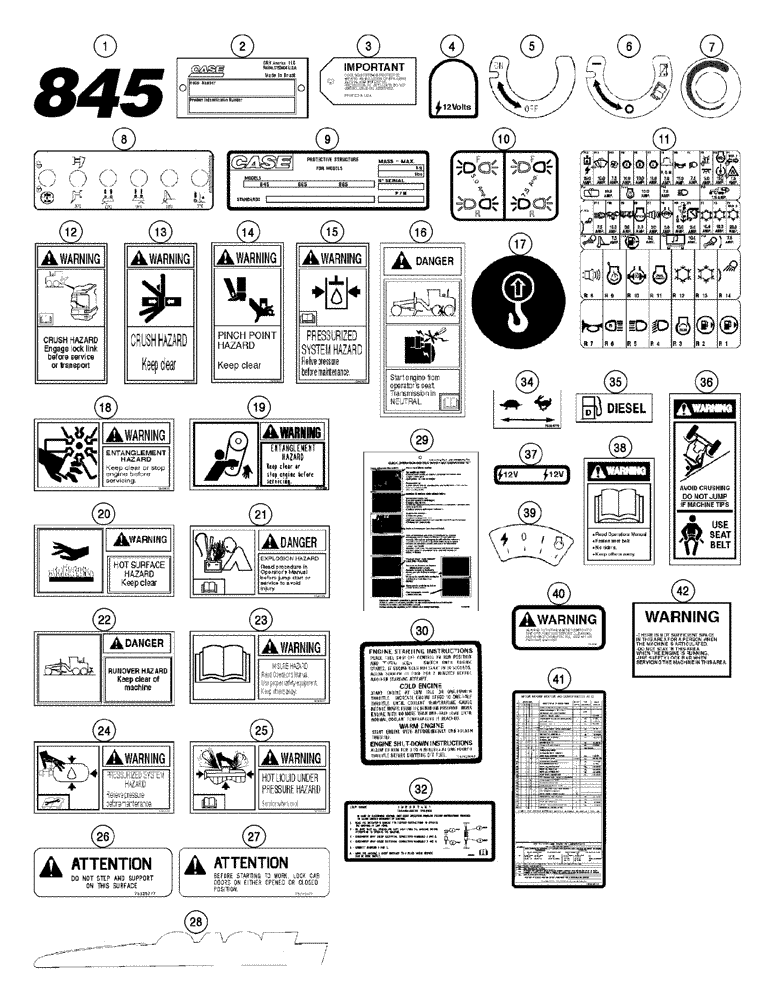

Запчасти Case 845 (09-130[01]) - DECALS (09) - CHASSIS

1

75320220

DECAL

845

2шт.

2

75327361

PLATE

Pin plate - port

1шт.

2

75327362

COVER PLATE

Pin plate - eng

1шт.

3

73109097

TAG

Cooling system

1шт.

4

75253332

DECAL

Warning (12V)

1шт.

5

79105247

DECAL

Master switch on-off

1шт.

6

75259379

DECAL

Master switch

1шт.

7

75321640

DECAL

Heater

1шт.

8

75322188

DECAL

Switches

1шт.

9

75325066

PLATE

Rops plate - port

1шт.

9

75325091

PLATE

Rops plate - eng

1шт.

9

75325092

PLATE

Rops plate - span

1шт.

10

75325004

DECAL

Fuses floodlights

1шт.

11

87362911

DECAL

Fuse box

1шт.

12

75259377

DECAL

Frame lock - eng

1шт.

12

75259382

DECAL

Frame lock - port

1шт.

12

75259387

DECAL

Frame lock - span

1шт.

13

323694A1

DECAL

Crush hazard - eng

2шт.

13

334575A1

DECAL

Crush hazard - port

2шт.

13

334576A1

DECAL

Crush hazard - span

2шт.

14

283609A1

DECAL

Pinch point - eng

10шт.

14

391267A1

DECAL

Pinch point - port

10шт.

14

391266A1

DECAL

Pinch point - span

10шт.

15

335889A1

DECAL

Pressurized system - eng

1шт.

15

336009A1

DECAL

Pressurized system - port

1шт.

15

336011A1

DECAL

Pressurized system - span

1шт.

16

75259368

DECAL

Danger starting - eng

1шт.

16

75259384

DECAL

Danger starting - port

1шт.

16

75259393

DECAL

Danger starting - span

1шт.

17

73163135

DECAL

Lifting eye

2шт.

18

332512A1

DECAL

Fan warning - eng

1шт.

18

334035A1

DECAL

Fan warning - port

1шт.

18

334034A1

WARNING DECAL

Fan, Spanish

1шт.

19

388112A1

DECAL

Belt - eng

1шт.

19

388159A1

DECAL

Belt - port

1шт.

19

388158A1

DECAL

Belt - span

1шт.

20

75259376

DECAL

Hot surface - eng

2шт.

20

75259385

DECAL

Hot surface - port

2шт.

20

75259392

DECAL

Hot surface - span

2шт.

21

412471A1

DECAL

Explosion danger - eng

1шт.

21

412475A1

DECAL

Explosion danger - port

1шт.

21

412474A1

DECAL

Explosion danger - span

1шт.

22

75259367

DECAL

Run over hazard - eng

2шт.

22

75259383

DECAL

Run over hazard - port

2шт.

22

75259391

DECAL

Run over hazard - span

2шт.

23

75325007

DECAL

Misuse hazard - eng

1шт.

23

75325006

DECAL

Misuse hazard - port

1шт.

23

75325008

DECAL

Misuse hazard - span

1шт.

24

75325025

DECAL

Hydr. accumulator - eng

1шт.

24

75325023

DECAL

Hydr. accumulator - port

1шт.

24

75325024

DECAL

Hydr. accumulator - span

1шт.

25

329044A1

WARNING DECAL,168mm x 88mm H

Pressurized Fluid - Eng

1шт.

25

334665A1

WARNING DECAL

Pressurized Fluid - Port

1шт.

25

334664A1

DECAL

Pressurized fluid - span

1шт.

26

75325777

DECAL

Do not step - eng

4шт.

26

75325776

DECAL

Do not step - port

4шт.

26

75325778

DECAL

Do not step - span

4шт.

26

75325792

DECAL

Do not step - fren

4шт.

27

75325122

DECAL

Door lock - eng

1шт.

27

75325020

DECAL

Door lock - port

1шт.

27

75325123

DECAL

Door lock - span

1шт.

28

75320376

EMBLEM

CASE stripe RH

1шт.

28

75320377

DECAL

CASE stripe RH

1шт.

28

75320378

DECAL

CASE stripe LH

1шт.

28

75320236

DECAL

CASE stripe LH

1шт.

29

75324164

DECAL

Operation instructions

1шт.

30

75325000

DECAL

Start instructions - eng

1шт.

30

75324998

DECAL

Start instructions - port

1шт.

30

75324999

DECAL

Start instructions - span

1шт.

34

75254779

DECAL

Accelerator

1шт.

35

73163151

DECAL

Fuel

1шт.

36

75325049

DECAL

Do not jump - eng

1шт.

36

75325047

DECAL

Do not jump - port

1шт.

36

75325048

DECAL

Do not jump - span

1шт.

37

75253501

DECAL

Warning 12V

5шт.

38

75325028

DECAL

Owner’s manual - eng

1шт.

38

75325026

DECAL

Owner’s manual - port

1шт.

38

75325027

DECAL

Owner’s manual - span

1шт.

39

75324996

DECAL

Ignition switch

1шт.

40

75325115

DECAL

Master key - eng

1шт.

40

75325114

DECAL

Master key - port

1шт.

40

75325116

DECAL

Master key - span

1шт.

41

87703761

IMPORTANT DECAL

Mainten. 845 Lim Slip - eng

1шт.

41

87703770

DECAL

Mainten. 845 Diff Lock - eng

1шт.

41

87703756

IMPORTANT DECAL

Mainten. 845 Lim Slip - port

1шт.

41

87703762

IMPORTANT DECAL

Minten. 845 Diff Lock - port

1шт.

41

87703760

IMPORTANT DECAL

Mainten. 845 Lim Slip - span

1шт.

41

87703769

DECAL

Mainten. 845 Diff Lock - span

1шт.

42

75324121

DECAL

Warning - eng

2шт.

42

75324126

DECAL

Warning - port

2шт.

42

75324206

DECAL

Warning - span

2шт.

43

75322353

WEAR STRIP

2шт.

Not shown

1шт.
