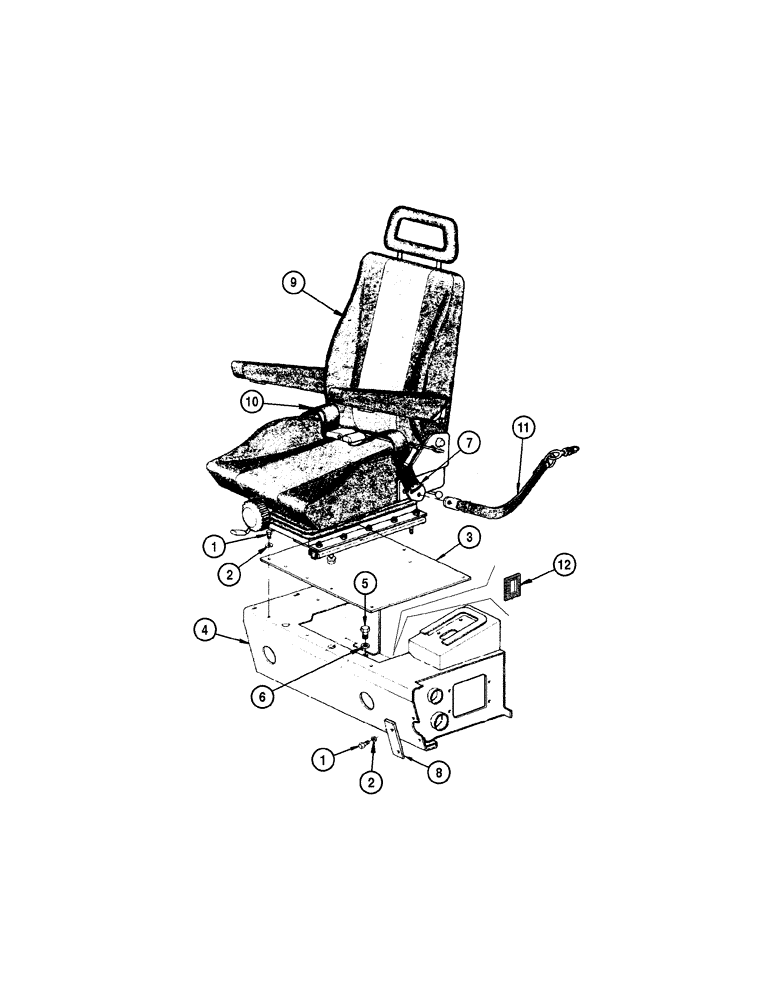

Запчасти Case 845 (09-110[01]) - SEAT - MOUNTING AND BRACKET (09) - CHASSIS

1

16043131

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

8шт.

2

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

8шт.

3

75281144

COVER

1шт.

4

87584595

SUPPORT

1шт.

For machines with closed cab

1шт.

4

87584591

SUPPORT

1шт.

5

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

6

12642021

WASHER

8шт.

7

REF

INSTRUCTION

BELT safety

1шт.

Page 09-114

1шт.

8

75281142

PLATE

Lower

1шт.

9

REF

INSTRUCTION

SEAT Assy

1шт.

Page 09-114

1шт.

10

REF

INSTRUCTION

BELT safety

1шт.

Page 09-114

1шт.

11

75312144

SAFETY BELT ,47.00 mm W

2шт.

12

75327066

SEAL RETAINER

2шт.

For machines with closed cab

1шт.
