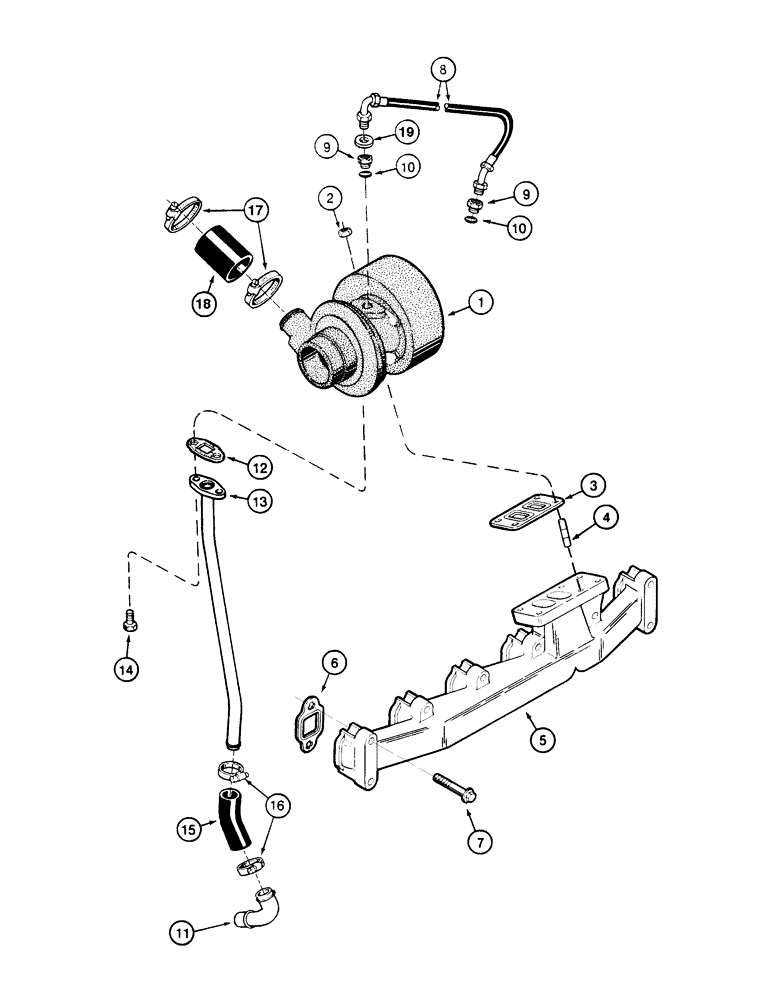

Запчасти Case 845 (02-28[01]) - TURBOCHARGER - MOUNTING (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER Assy

1шт.

For 845 model

1шт.

Page 02-30

1шт.

1

REF

INSTRUCTION

TURBOCHARGER Assy

1шт.

For 845 DHP Dual Power model

1шт.

Page 02-30

1шт.

2

J818824

FLANGE NUT

4шт.

3

J901356

GASKET,0.5mm Thk

1шт.

4

J818823

STUD

4шт.

5

J902347

MANIFOLD

1шт.

For 845 model

1шт.

5

J917700

MANIFOLD

1шт.

For 845 DHP Dual Power model

1шт.

6

J927154

GASKET,0.38mm Thk

6шт.

7

J930249

FLANGE BOLT,Hex, M10 x 1.5 x 65mm

12шт.

8

J920603

HOSE

1шт.

9

J919687

HYD CONNECTOR

Includes item 10

2шт.

10

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

2шт.

11

J931973

TUBE,0.875" OD

1шт.

12

J931350

GASKET

1шт.

For 845 model

1шт.

12

J937706

GASKET,0.79mm Thk

1шт.

For 845 DHP Dual Power model

1шт.

13

J918583

TUBE

1шт.

For 845 model

1шт.

13

J933199

TUBE

1шт.

For 845 DHP Dual Power model

1шт.

14

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

For 845 model

1шт.

14

J900630

BOLT,Hex Flg, M8 x 20, 8.8, Full Thd

2шт.

For 845 DHP Dual Power model

1шт.

15

J912183

HOSE

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

17

J924389

SEALING WASHER

2шт.
