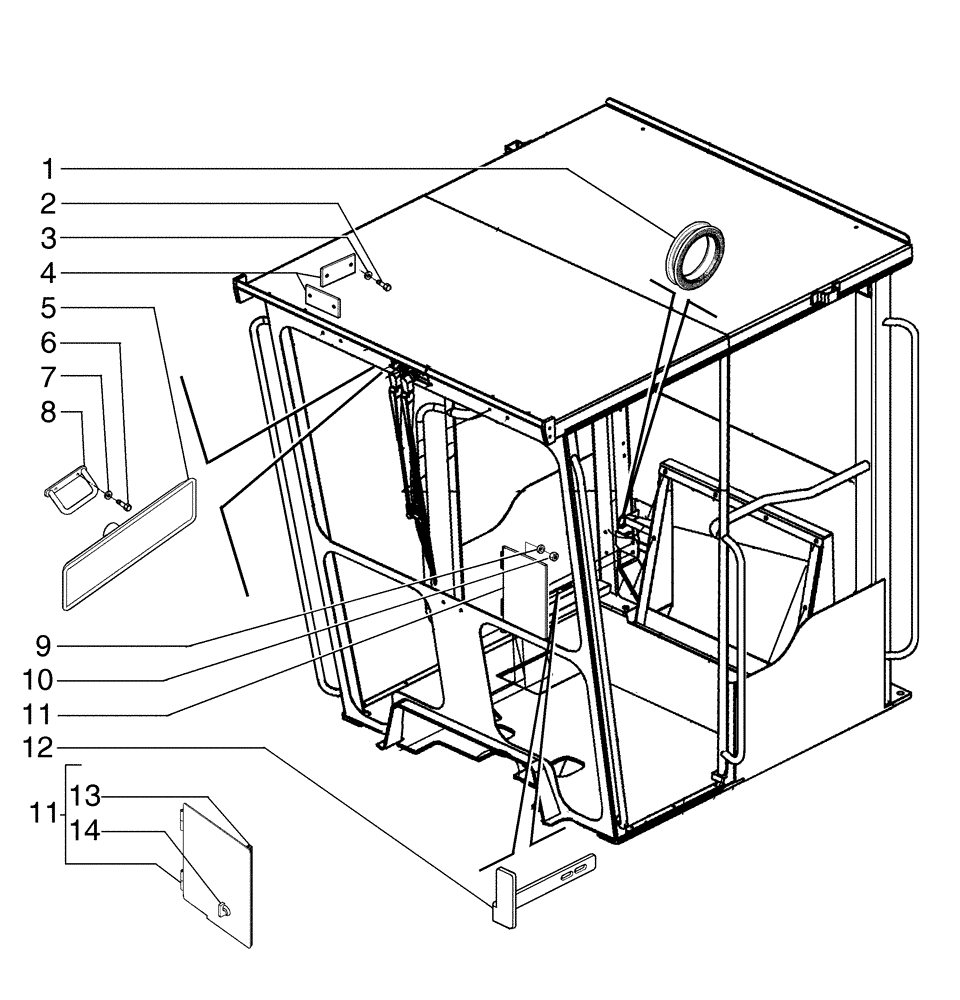

Запчасти Case 845 (09-060-A[01]) - CANOPY - SUNSHADE AND REAR VIEW MIRROR (09) - CHASSIS

1

87557952

GASKET

1шт.

2

10902331

SCREW,Hex, M6 x 18mm, Cl 10.9, Full Thd

6шт.

3

13577921

WASHER

6шт.

4

87553398

ACCESS COVER

3шт.

5

87557953

REAR VIEW MIRROR

1шт.

6

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

7

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

RH

4шт.

8

87557808

SUPPORT

LH

1шт.

9

10519301

WASHER,5.3mm ID x 9.55mm OD x 1mm Thk

4шт.

10

15896411

NUT,Hex, M5, 4.70mm High, Cl 8

4шт.

11

87620340

DOOR

1шт.

12

87621921

PLATE

LH

1шт.

13

75323210

GASKET,10mm W x 320mm L x 10mm Thk

Front

1шт.

14

87620327

LOCK

LH

1шт.
