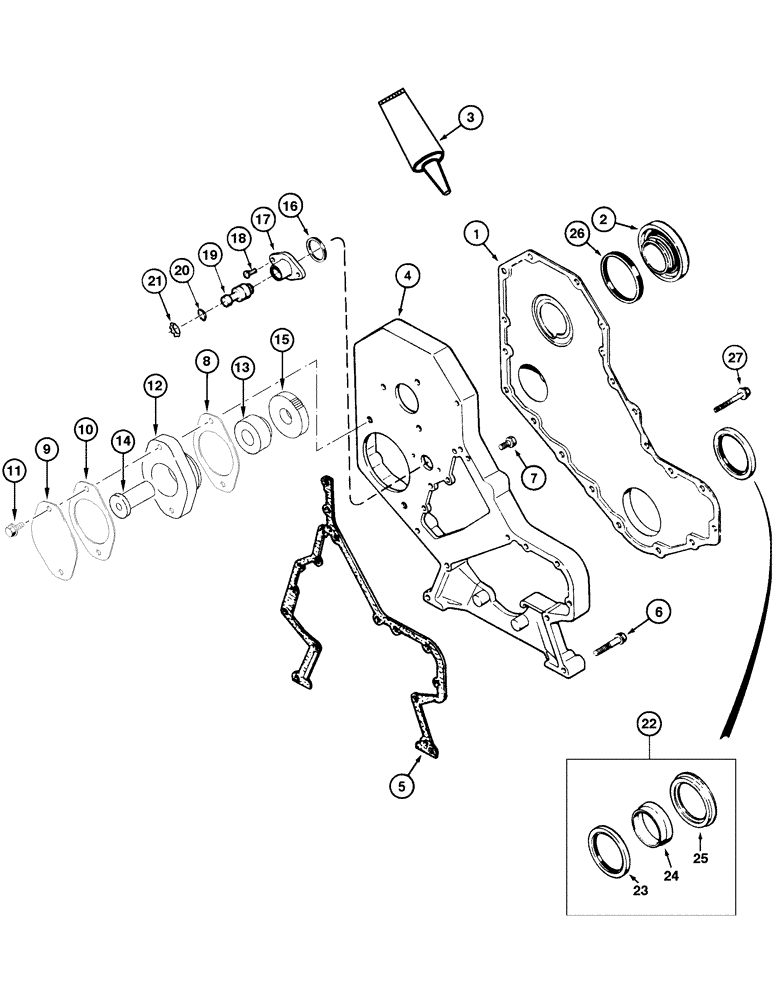

Запчасти Case 845 (02-26[01]) - TIMING GEAR HOUSING (02) - ENGINE

1

J935584

COVER

1шт.

For 845 model

1шт.

1

J969880

COVER

1шт.

For 845 DHP Dual Power model

1шт.

2

J903463

PLUG,M63 x 5

1шт.

For 845 model

1шт.

2

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

For 845 DHP Dual Power model

1шт.

3

149908A1

GASKET

1шт.

4

J936257

HOUSING

1шт.

For 845 model

1шт.

4

J936256

HOUSING

1шт.

For 845 DHP Dual Power model

1шт.

5

J931351

GASKET

1шт.

For 845 model

1шт.

5

J938156

GASKET,0.79mm Thk

1шт.

For 845 DHP Dual Power model

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

11шт.

7

J926846

FLANGE BOLT

5шт.

8

A77441

GASKET

1шт.

9

J914868

COVER

1шт.

10

J929751

GASKET

1шт.

11

J902115

FLANGE BOLT,Hex, M12 x 65mm, Cl 10.9

2шт.

J924882

ANGLE DRIVE

Assy Pump, Includes items 12 - 15

1шт.

For 845 model

1шт.

12

J924881

ADAPTER

1шт.

13

J902601

BEARING, ROLLER,35mm ID x 64mm OD x 37mm W

1шт.

14

J923242

SHAFT

Drive

1шт.

15

J902595

GEAR

1шт.

J939961

DRIVE ASSY.

Pump, Includes items 12 - 15

1шт.

For 845 DHP Dual Power model

1шт.

12

J939957

ADAPTER

1шт.

13

J935644

BEARING, ROLLER

1шт.

14

J935645

SHAFT

Drive

1шт.

15

J936136

GEAR

1шт.

16

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING

1шт.

17

J919683

HOUSING

1шт.

18

J907998

SCREW,M5 x 0.8 x 17mm, Cl 8.8

2шт.

19

J903924

PIN,18.87mm OD x 55mm L

1шт.

20

J913994

O-RING

1шт.

21

J904849

SNAP RING,0.875", Int, #87

1шт.

22

J937111

ENGINE OVERHAUL KIT

Seal

1шт.

23

NSS

NOT SOLD SEPARAT

SEAL

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL

1шт.

25

NSS

NOT SOLD SEPARAT

TOOL

1шт.

26

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

1шт.

27

J924962

FLANGE BOLT

11шт.
