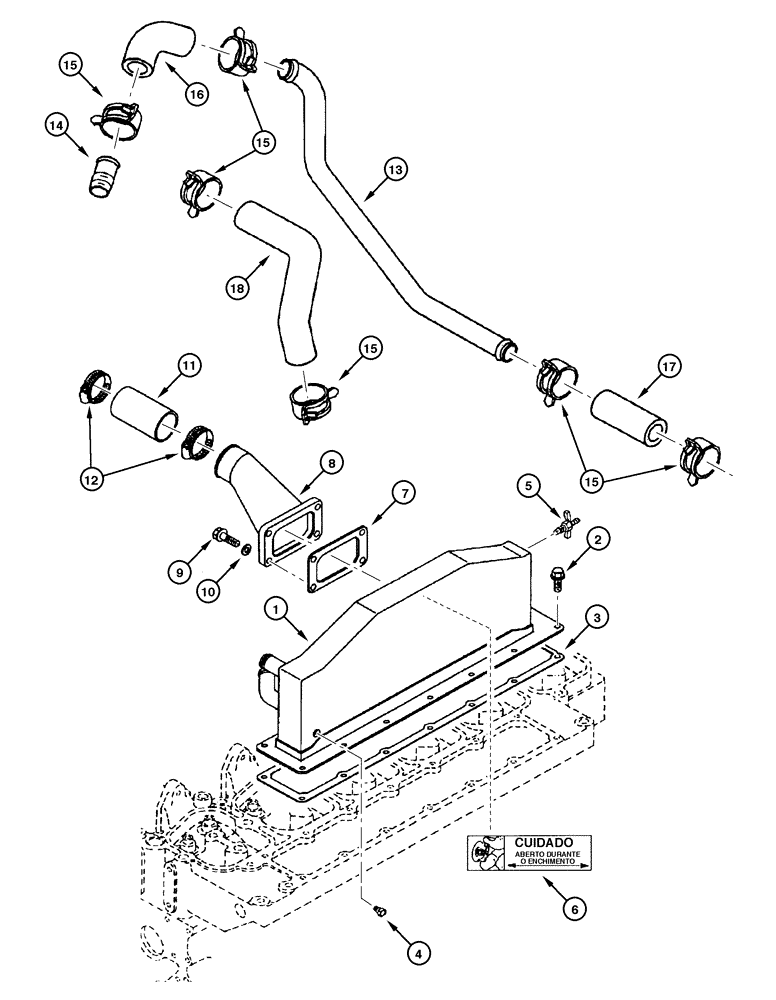

Запчасти Case 845 (02-24[01]) - AFTERCOOLER TUBES (02) - ENGINE

1

J919806

AFTERCOOLER

Air

1шт.

For 845 model

1шт.

1

J928503

AFTERCOOLER

Air

1шт.

For 845 DHP Dual Power model

1шт.

2

J918108

FLANGE BOLT,Hex, M8 x 1.25 x 16mm

12шт.

3

J938152

MANIFOLD GASKET

Intake manifold

1шт.

4

J906619

PLUG,1/8" - 27

1шт.

5

J909394

COCK, DRAIN

1шт.

6

J910778

DECAL

1шт.

7

J914856

GASKET,1.02mm Thk

Connector

1шт.

For 845 model

1шт.

7

J930426

GASKET

Connector

1шт.

For 845 DHP Dual Power model

1шт.

8

J933288

CONNECTOR, ELEC

CONNECTOR

1шт.

For 845 model

1шт.

8

J928501

FITTING

1шт.

For 845 DHP Dual Power model

1шт.

9

J280899

SCREW

4шт.

10

J918189

SEALING WASHER

4шт.

11

J916165

HOSE

1шт.

For 845 model

1шт.

11

J970407

HOSE

1шт.

For 845 DHP Dual Power model

1шт.

12

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

2шт.

For 845 model

1шт.

12

J026396

BRACKET

2шт.

For 845 DHP Dual Power model

1шт.

13

J934170

TUBE,0.75" OD

Air cooler

1шт.

For 845 model

1шт.

13

J927956

TUBE,19.05 mm OD x 473.6 mm L

Air cooler

1шт.

For 845 DHP Dual Power model

1шт.

14

J907167

SPLINED COUPLING

1шт.

15

J937613

HOSE CLAMP

6шт.

16

J918607

HOSE,43.20 mm

1шт.

17

J918611

HOSE,18.50 mm ID x 63.00 mm

1шт.

18

J928492

TUBE

1шт.

19

J928464

SPACER

1шт.

For 845 DHP Dual Power model

1шт.

20

J913638

FLANGE BOLT,Hex, M6 x 15mm, Cl 8.8, Full Thd

1шт.

For 845 DHP Dual Power model

1шт.

21

J900956

PLUG

1шт.

For 845 DHP Dual Power model

1шт.

22

J008468

PLUG

1шт.

For 845 DHP Dual Power model

1шт.
