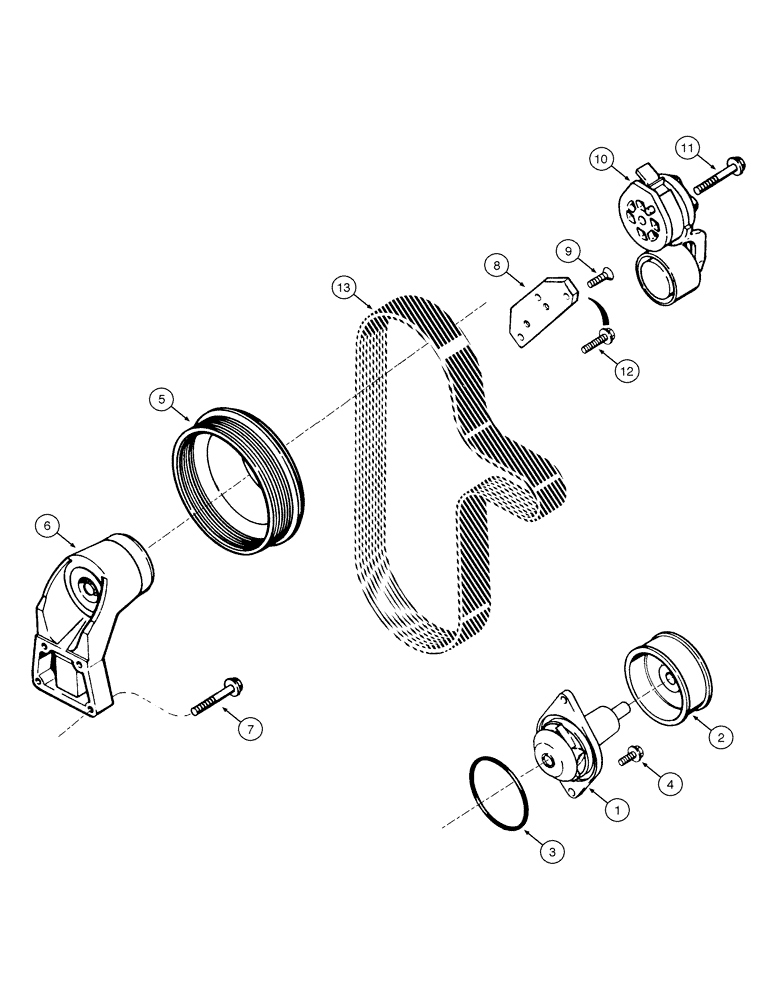

Запчасти Case 845 (02-22[01]) - WATER PUMP (02) - ENGINE

147071A1

COMMUTATOR

Pump Water Assy

1шт.

For 845 model

1шт.

J286278R

REMAN-WATER PUMP

Reman for new P/N 147071A1

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

J286275

COMMUTATOR

Pump Water Assy

1шт.

For 845 DHP Dual Power model

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

1шт.

4

J941981

SCREW,Hex Flg, M8 x 1.25 x 22mm, Gr 9.8

2шт.

5

J914462

PULLEY,163mm OD

1шт.

6

J911922

SUPPORT ASSY.

fan

1шт.

6

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

Not shown

1шт.

6

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

Not shown

1шт.

6

J911924

HUB

1шт.

Not shown

1шт.

6

J923044

RETAINER

1шт.

Not shown

1шт.

6

148570A1

SNAP RING

2шт.

Not shown

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

1шт.

Not shown

1шт.

7

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

8

J925207

SUPPORT

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

10

J937553

TENSIONER

Assy

1шт.

For 845 model

1шт.

10

J967188

BELT TENSIONER

Assy

1шт.

For 845 DHP Dual Power model

1шт.

11

J920446

SCREW

1шт.

12

J900631

FLANGE BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

13

J911575

V-BELT,27.92mm W x 1602mm L, 8 Ribs

1шт.
