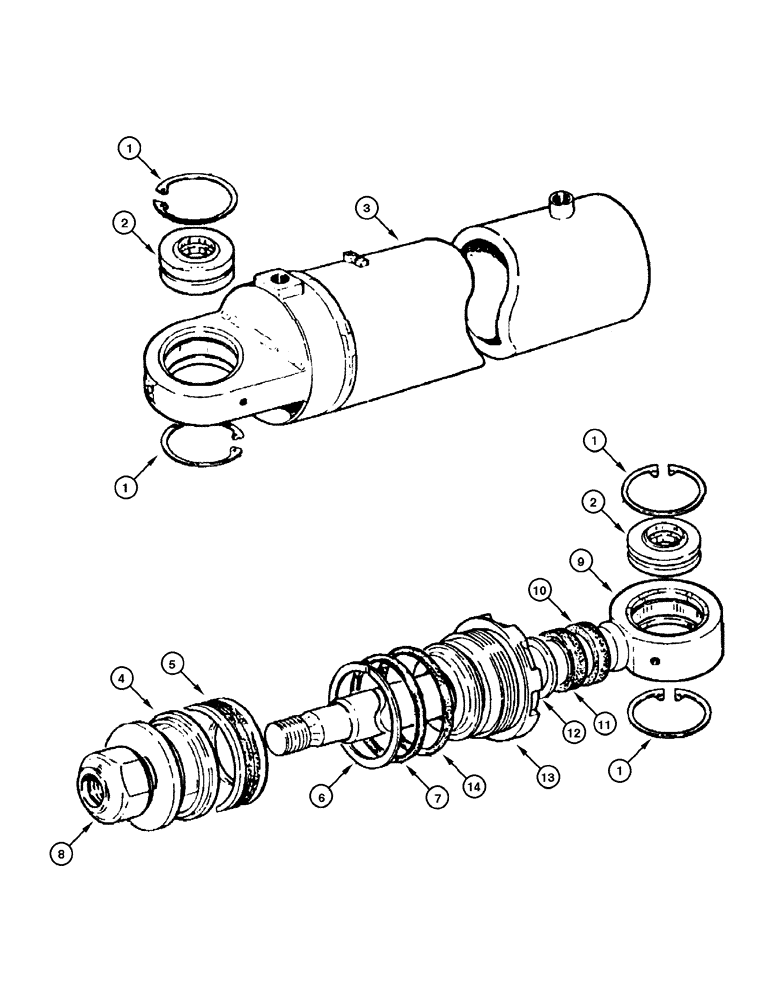

Запчасти Case 845 (08-116[01]) - CYLINDER - ARTICULATION LH/RH (08) - HYDRAULICS

75267304

CYLINDER

Articulation RH Assy, Includes items 1 - 14

1шт.

75213774R

REMAN-HYD CYLINDER

845 MOTOR GRADER TIER I (BR) ASN N8AF07000, Articulation RH Assy (6/08-), Reman for New PN 75267304

1шт.

75213774C

CORE-HYD CYLINDER

Return Number

1шт.

1

11061076

SNAP RING,M62, Int

8шт.

2

70928851

BEARING ASSY

4шт.

3

75213542

LINER, ENGINE CYLIND,585 mm Length

RH

1шт.

4

79038730

PISTON

2шт.

5

8291506

SEALING RING

SEALRING

2шт.

6

8297295

RING,73.8mm ID x 80mm OD x 1.5mm Thk

Anti-extrusion

2шт.

7

14465180

O-RING,72.62mm ID x 3.53mm Width

2шт.

8

8281325

NUT

2шт.

9

75213768

ROD,45mm OD x 533mm L

2шт.

10

8288822

SEAL

2шт.

11

8297294

GASKET

2шт.

12

8297296

RING

Seal

2шт.

13

75220934

BASE PLATE

2шт.

14

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

2шт.

75209587

SEAL

Repair

1шт.

Kit includes items 3, 4, 6, 7, 9, 11, 13, 14

1шт.

75267307

CYLINDER

Articulation LH Assy, Includes items 1 - 14

1шт.

75213779R

REMAN-HYD CYLINDER

845 MOTOR GRADER TIER I (BR) ASN N8AF07000, Articulation LH Assy (6/08-), Reman for New PN 75267307

1шт.

75213779C

CORE-HYD CYLINDER

Return Number

1шт.

1

11061076

SNAP RING,M62, Int

8шт.

2

70928851

BEARING ASSY

4шт.

3

75213543

LINER, ENGINE CYLIND,585 mm Length

LH

1шт.

4

79038730

PISTON

2шт.

5

8291506

SEALING RING

SEALRING

2шт.

6

8297295

RING,73.8mm ID x 80mm OD x 1.5mm Thk

Anti-extrusion

2шт.

7

14465180

O-RING,72.62mm ID x 3.53mm Width

2шт.

8

8281325

NUT

2шт.

9

75213768

ROD,45mm OD x 533mm L

2шт.

10

8288822

SEAL

2шт.

11

8297294

GASKET

2шт.

12

8297296

RING

Seal

2шт.

13

75220934

BASE PLATE

2шт.

14

14465480

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

2шт.

75209587

SEAL

Repair

1шт.

Kit includes items 3, 4, 6, 7, 9, 11, 13, 14

1шт.
