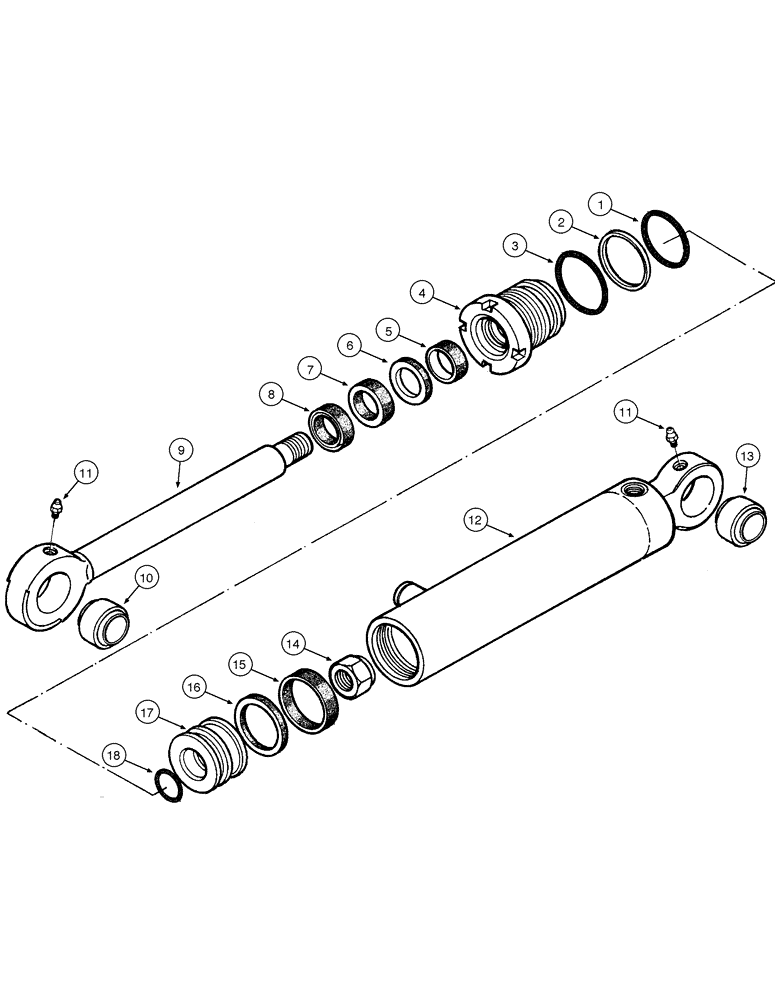

Запчасти Case 845 (08-102[01]) - FRONT AXLE LEAN CYLINDER - ASSEMBLY (08) - HYDRAULICS

87632360

CYLINDER,Double Acting, 45mm Rod, 203mm Stroke

Front Axle Lean Assy, Includes items 1 - 18

1шт.

87632360R

REMAN-HYD CYLINDER

845 MOTOR GRADER TIER I (BR) - ASN N8AF07000, Front Axle Lean Assy (6/08-)

1шт.

87632360C

CORE-HYD CYLINDER

Return Number

1шт.

1

75313196

O-RING

1шт.

2

75313195

O-RING

1шт.

3

75313194

O-RING

1шт.

4

71103585

COVER

1шт.

5

71103583

SEALING RING

1шт.

6

75313181

O-RING

1шт.

7

75313179

O-RING

1шт.

8

75313178

O-RING

Wiper

1шт.

9

71103586

ROD

1шт.

10

71103630

BUSHING

2шт.

11

75313447

LUBE NIPPLE

2шт.

12

71103580

LINER, ENGINE CYLIND

1шт.

13

71103630

BUSHING

2шт.

14

75313187

LOCK NUT

1шт.

15

71103587

RING

Seal

1шт.

16

71103588

SEALING RING

1шт.

17

71103581

PLUNGER

1шт.

18

71103582

RUBBER RING

1шт.
