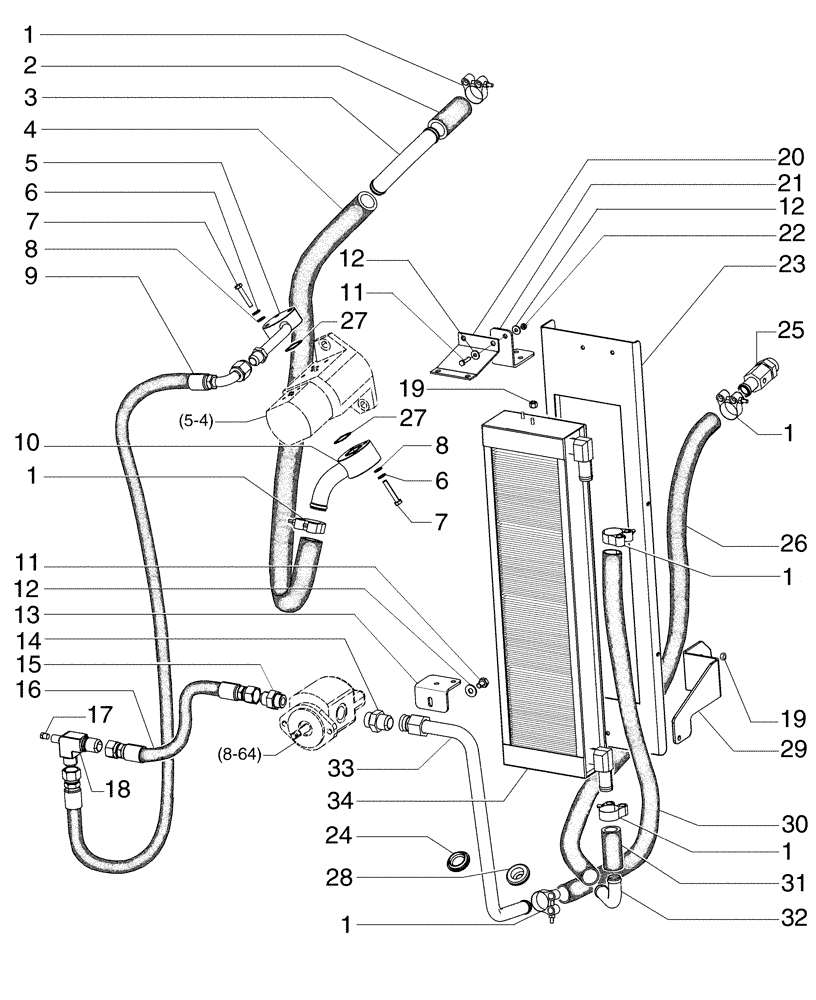

Запчасти Case 845 (08-060[01]) - ENGINE COOLING SYSTEM - FAN HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

214-2122

CLAMP,39.62mm - 45.97mm

CLAMP

10шт.

2

87744567

HYDRAULIC HOSE,32.00 mm ID x mm, SAE 100R4

1шт.

3

87744564

TUBE,28 mm ID x 32 mm OD

TUBE

1шт.

4

87744565

HYDRAULIC HOSE,32.00 mm ID x mm, SAE 100R4

1шт.

5

87746768

FLANGE

FLANGE

1шт.

6

10516671

LOCK WASHER

WASHER, LOCK

6шт.

7

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

BOLT

6шт.

8

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

WASHER

6шт.

9

75253273

HOSE,19mm ID x 1900mm L, SAE 100R1

HOSE

1шт.

10

87744722

TUBE,1.25" OD

TUBE

1шт.

11

10902631

BOLT,Hex, M6 x 25mm, Cl 10.9

BOLT

4шт.

12

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

WASHER

16шт.

13

87752061

SUPPORT

SUPPORT

1шт.

14

70921228

HYD CONNECTOR

CONNECTOR, HYD.

1шт.

15

70921217

HYD CONNECTOR

CONNECTOR, HYD.

1шт.

16

87394149

HOSE,19mm ID x 480mm L, SAE 100R2

HOSE

1шт.

17

70919134

PLUG

PLUG

1шт.

18

75325032

HYD CONNECTOR

CONNECTOR, HYD.

1шт.

19

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, LOCK

8шт.

20

73164364

PLATE

PLATE

1шт.

21

87752060

SUPPORT

SUPPORT

1шт.

22

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

NUT

4шт.

23

87751431

PLATE

PLATE

1шт.

24

75327779

PLUG

PLUG

1шт.

25

217-352

FITTING,90 Degree Elbow, 1" Hose Barb x 1-5/16" - 12 Male ORB

FITTING

1шт.

26

87489522

HOSE,25.4mm ID x 800mm L, SAE 100R3

1шт.

27

14463780

O-RING,0.139" Thk x 1.296" ID, -219, Cl 5, 75 Duro

O-RING

2шт.

28

75327777

GROMMET

GROMMET

1шт.

29

84144812

SUPPORT

SUPPORT

1шт.

29

84144811

SUPPORT

SUPPORT

1шт.

30

84124000

HOSE,25.4mm ID x 1300mm L, SAE 100R3

1шт.

31

E66256

SLEEVE

SLEEVE

1шт.

32

87489520

RETURN PIPE

PIPE, RETURN

1шт.

33

73164378

PIPE

PIPE

1шт.

33

84169787

RIGID TUBE,22.90 mm ID x 25.40 mm OD

PIPE, Start Serial: N9AF07112

1шт.

34

87751052

OIL COOLER

COOLER, OIL

1шт.
