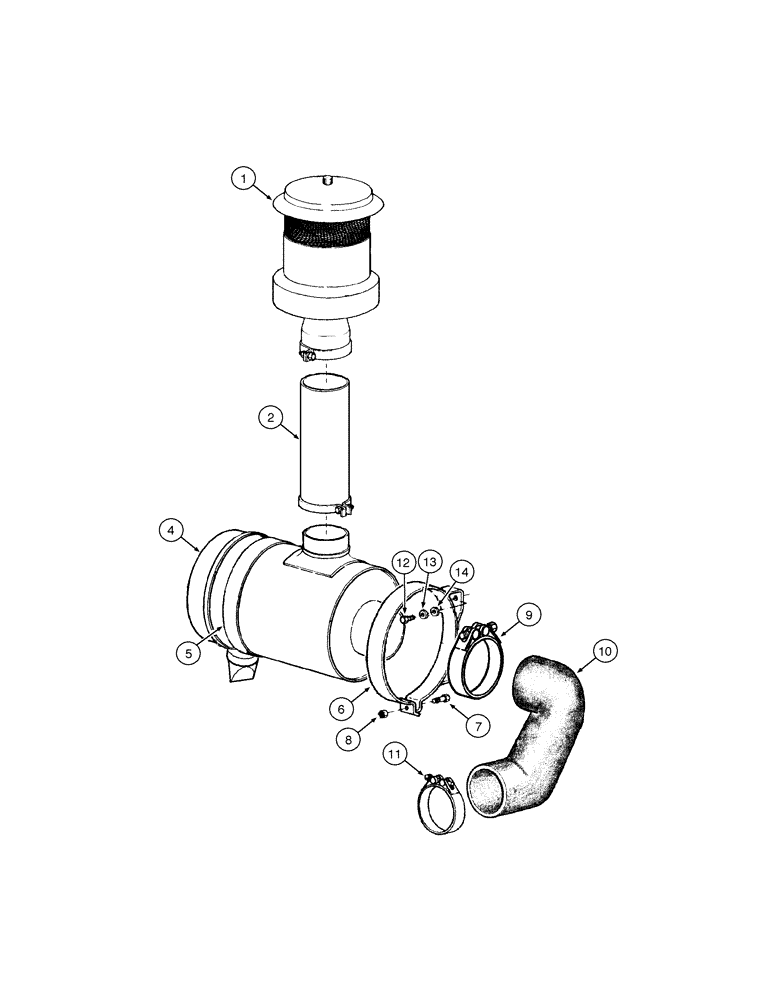

Запчасти Case 845 (02-14[01]) - AIR CLEANER - MOUNTING (02) - ENGINE

1

REF

INSTRUCTION

PRE-FILTER Assy

1шт.

Page 02-18

1шт.

2

75261230

TUBE

1шт.

4

REF

INSTRUCTION

FILTER Air Assy

1шт.

Page 02-16

1шт.

4

75265312

AIR FILTER

Includes items 5 - 8

1шт.

5

71100461

BRACKET

2шт.

6

71100653

CLAMP

Assy

1шт.

7

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

2шт.

8

16100821

NUT,M8, Cl 10

2шт.

9

L127771

CLAMP,107.95mm - 130.18mm

1шт.

10

75325491

INTAKE AIR HOSE,101.60 mm ID, 114.00 mm ID x 292.00 mm

1шт.

11

70929419

CLAMP

1шт.

12

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

13

10516873

WASHER

4шт.

14

12646821

WASHER,10.2mm ID x 25mm OD x 2mm Thk

4шт.
