(02-12[01]) - COOLING SYSTEM - ENGINE TUBING

Запчасти Case 845 (02-12[01]) - COOLING SYSTEM - ENGINE TUBING (02) - ENGINE

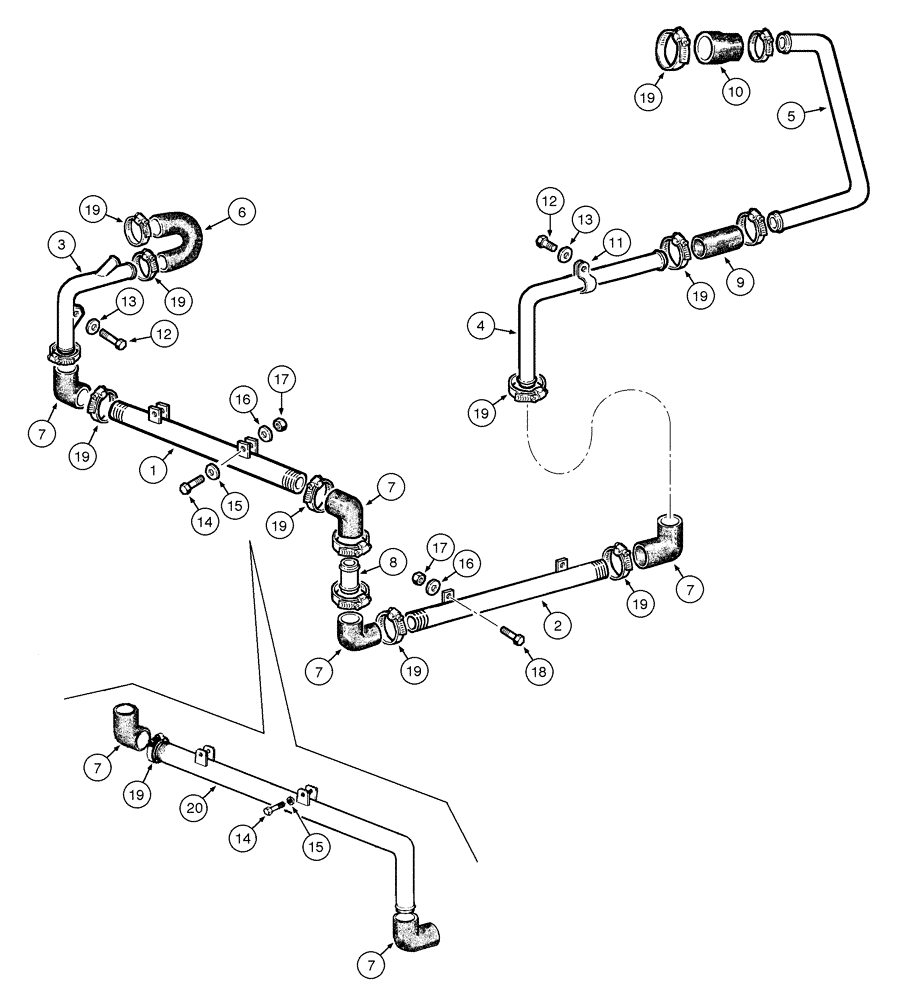

Схема запчастей Case 845 - (02-12[01]) - COOLING SYSTEM - ENGINE TUBING (02) - ENGINE
13
19
7
19
19
3
7
19
18
19
12
19
8
2
15
16
7
14
13
7
6
17
16
19
9
4
7
14
12
11
17
19
20
19
1
5
10
7
19
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87750090

TUBE,46.6 mm ID x 50.8 mm OD

1шт.

2

75257806

RIGID TUBE,47 mm ID, 50 mm OD, 795 mm Length

1шт.

3

73164399

PIPE,46.6 mm ID, 50.8 mm OD, 375, 342 mm Length

1шт.

4

87600871

TUBE

1шт.

5

73163939

TUBE

1шт.

6

75324694

HOSE,51.00 mm ID, 57.00 mm ID, SAE J20R4 D1

1шт.

7

75240636

HOSE,50.00 mm ID x 135.00 mm

4шт.

8

75324204

TUBE,46.6 mm ID, 50.8 mm OD, 70 mm Length

, Serial Range: -N9AF0784

1шт.

9

73107726

HOSE

1шт.

10

73162686

HOSE

1шт.

11

70927313

CLAMP

2шт.

12

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

13

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

14

11107531

SCREW,Hex, M10 x 65mm, Cl 10.9

2шт.

15

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

16

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

17

11701721

NUT,M10, Cl 10

4шт.

18

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

2шт.

19

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

14шт.

20

84135856

RIGID TUBE,46.6 mm ID, 50.8 mm OD, 579 mm Length

, Start Serial: N9AF07085

1шт.
