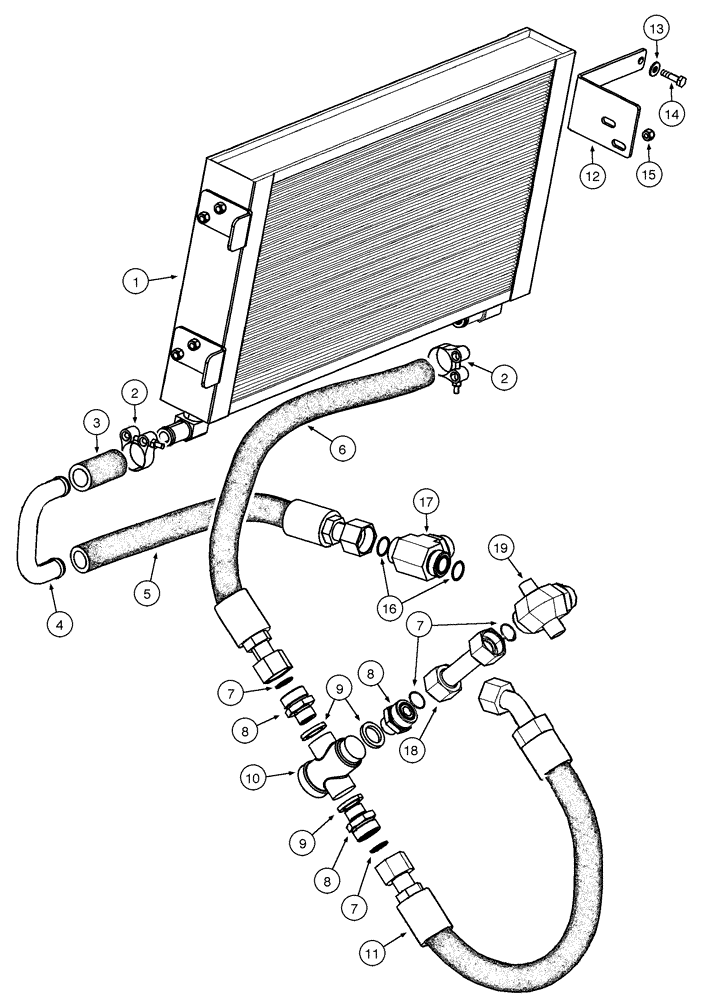

Запчасти Case 845 (06-42[01]) - TRANSMISSION - OIL COOLING SYSTEM (06) - POWER TRAIN

1

8501295

OIL COOLER

1шт.

2

87372829

CLAMP,1.40" - 1.56"

4шт.

3

E66256

SLEEVE

1шт.

4

84126500

TUBE,25 mm OD, 120, 75 mm Length

1шт.

5

84124024

HOSE,25.4mm ID x 440mm L, SAE 100R3

1шт.

6

84124023

HOSE,25.4mm ID x 800mm L, SAE 100R3

1шт.

7

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

4шт.

8

87734594

FITTING

3шт.

9

73136636

COPPER WASHER,26.3mm ID x 38mm OD x 5mm Thk

3шт.

10

4133510

THERMOSTAT

1шт.

11

87751831

HOSE,25.4mm ID x 900mm L, SAE 100R1

1шт.

12

84144547

SUPPORT

Upper

1шт.

12

84144548

SUPPORT

Lower

1шт.

13

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

14

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

15

832-10408

NUT,M8 x 1.25, Cl 8.8

4шт.

16

70931640

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

2шт.

17

201-404

FITTING,1 7/16"-12 x 1 5/16"-12 Br, ORFS

1шт.

18

87751830

TUBE,25.4 mm OD x 103 mm L

1шт.

19

75323134

FITTING

1шт.
