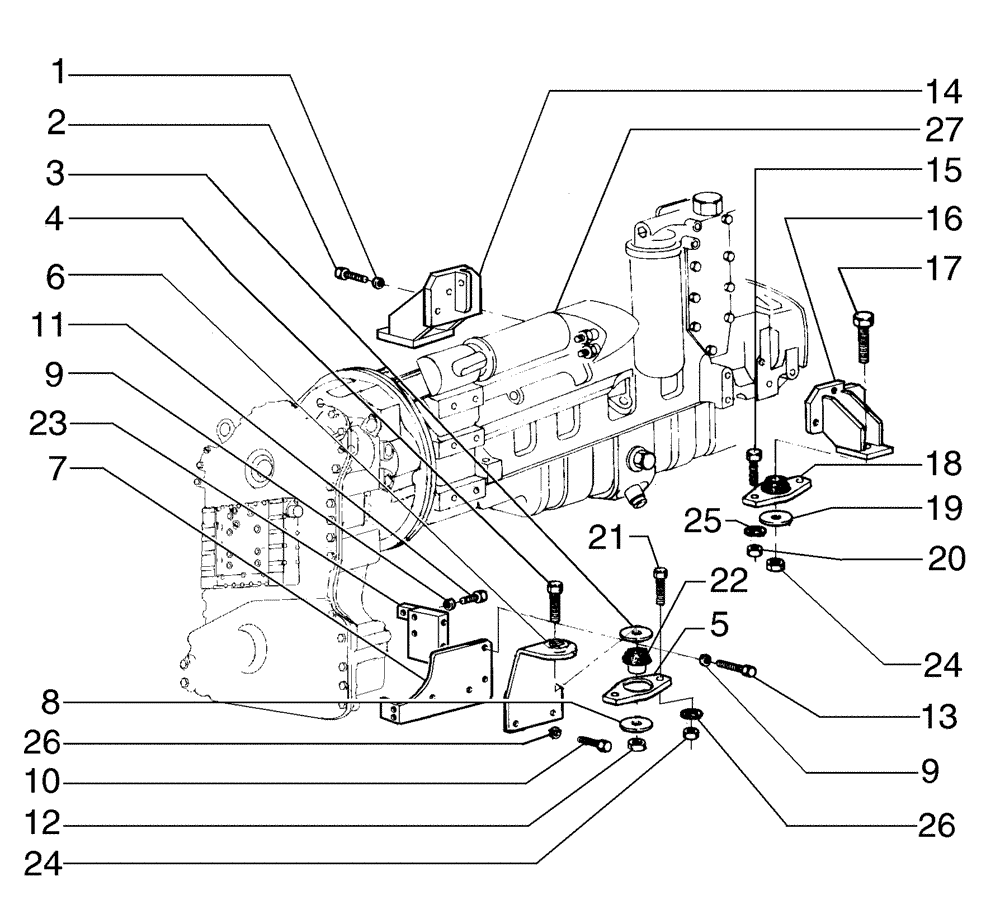

Запчасти Case 845 (02-02[01]) - ENGINE - MOUNTING (02) - ENGINE

1

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

22шт.

2

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

6шт.

3

73163534

WASHER,23.82mm ID x 88.9mm OD x 7.94mm Thk

2шт.

4

15994031

BOLT,Hex, M22 x 1.5 x 130mm, Cl 10.9

2шт.

5

73163953

PLATE

2шт.

6

87739073

SUPPORT

Transmission LH

1шт.

6

87739075

SUPPORT

Transmission RH

1шт.

7

87739042

SUPPORT

RH

1шт.

7

87739045

SUPPORT

LH

1шт.

8

73163934

HOSE

2шт.

9

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

12шт.

10

627-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

4шт.

11

11124831

BOLT,Hex, M20 x 55, 10.9, Full Thd

4шт.

12

12164427

NUT,M22 x 1.5, Cl 10

2шт.

13

11124431

BOLT,Hex, M20 x 40mm, Cl 10.9, Full Thd

8шт.

14

75324815

SUPPORT

LH

1шт.

15

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

RH

4шт.

16

73163921

BRACKET

LH

1шт.

17

15846437

BOLT,Hex, M16 x 1.5 x 95mm, Cl 10.9

RH

2шт.

18

73163866

ENGINE MOUNT

2шт.

19

70926195

WASHER

2шт.

20

11701721

NUT,M10, Cl 10

4шт.

21

15840531

BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd

Transmission

4шт.

22

361187A1

ISOLATOR

2шт.

23

87739035

SUPPORT

LH

1шт.

23

87739036

SUPPORT

RH

1шт.

24

12164121

NUT,M16 x 1.5, Cl 10

6шт.

25

12644324

WASHER,10.2mm ID x 35mm OD x 3mm Thk

4шт.

26

70927275

WASHER

8шт.

27

87735180

ENGINE,114kW, 5.9L, 6 Cylinders, W/ Turbocharger

Assy

1шт.

27

84144530

ENGINE

Assy

1шт.

For DHP

1шт.
