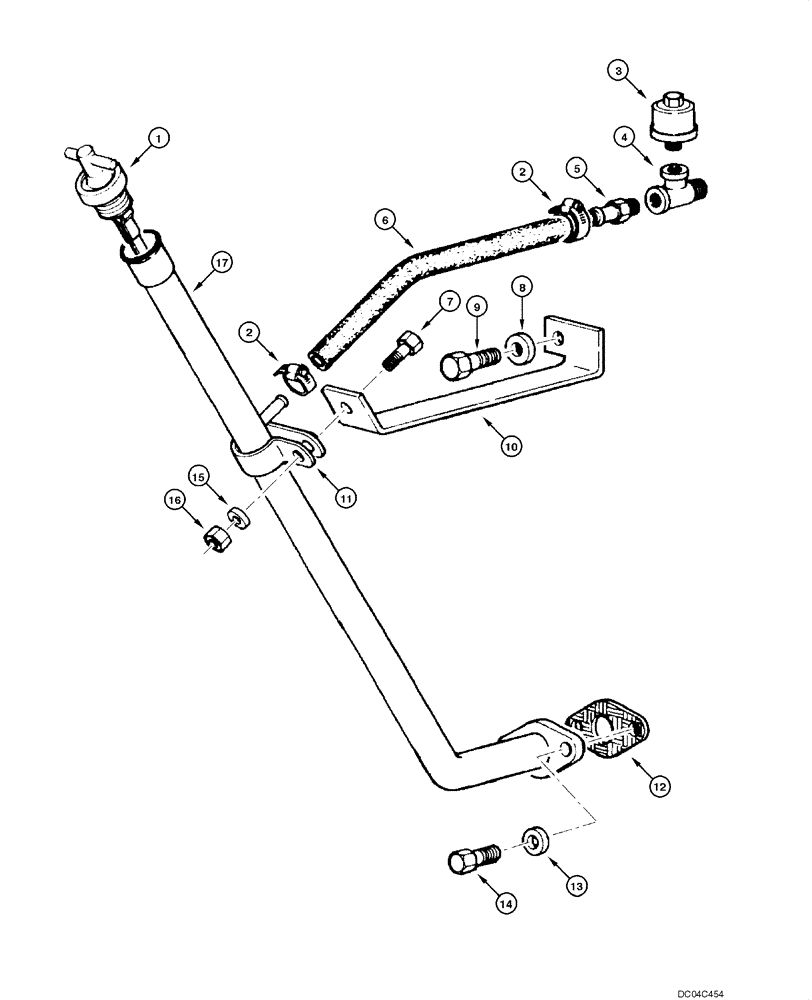

Запчасти Case 845 (06.06[00]) - TRANSMISSION DIPSTICK (06) - POWER TRAIN

1

75261090

DIPSTICK

Oil Level

1шт.

2

79084753

HOSE CLIP,M10-18

2шт.

3

70050748

BREATHER

1шт.

4

75249415

HYD CONNECTOR

1шт.

5

70925957

HYD CONNECTOR

1шт.

6

75256544

HOSE,9.50 mm ID x 260.00 mm

1шт.

7

11112231

SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

1шт.

8

70677010

WASHER,16.67mm ID x 38.1mm OD x 7.94mm Thk

1шт.

9

11118531

BOLT,Hex, M16 x 40, 10.9

1шт.

10

75256540

SUPPORT

1шт.

11

70929806

COLLAR

1шт.

12

75248283

GASKET,0.8mm Thk

1шт.

13

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

2шт.

14

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

15

12646921

WASHER,12.2mm ID x 28mm OD x 3mm Thk

1шт.

16

11702921

NUT,M12, Cl 10

1шт.

17

75256535

RIGID TUBE,25.4 mm OD, 548, 350 mm Length

1шт.
