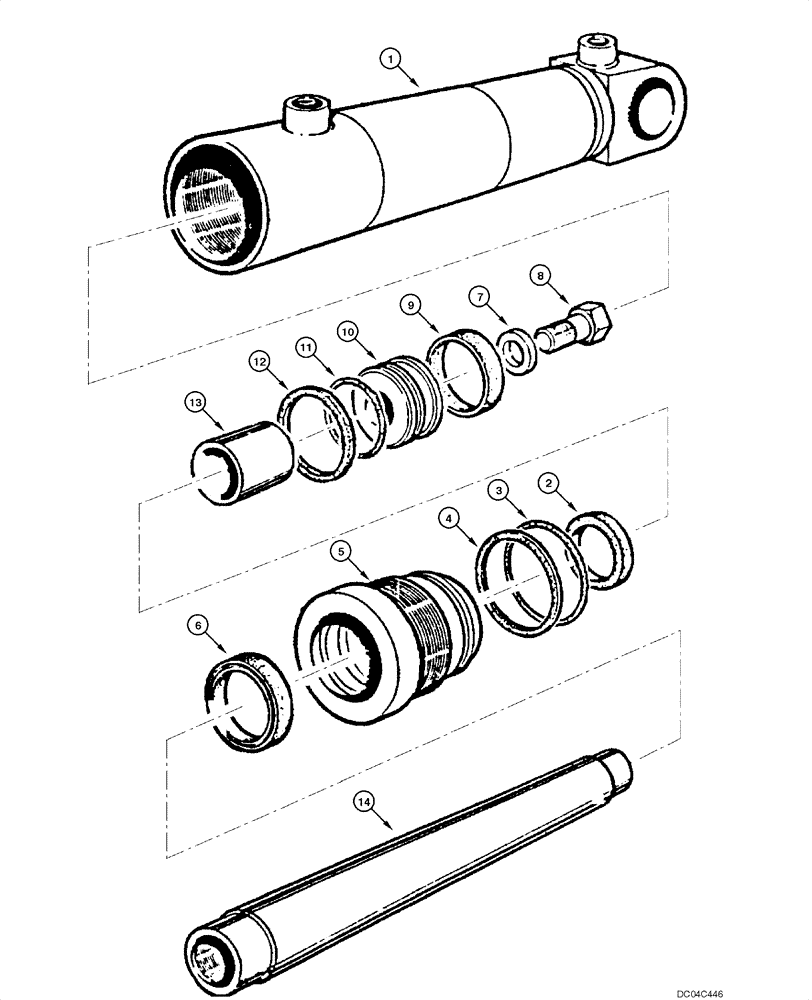

Запчасти Case 845 (05.03[00]) - STEERING CYLINDER - ASSEMBLY (05) - STEERING

75266845

HYDRAULIC CYLINDER

Steering Cylinder, Incl. 1 - 14

1шт.

1

73065115

CYLINDER

1шт.

2

73069566

SEAL,38.1mm ID x 50.8mm OD x 9.53mm Thk

1шт.

3

70924158

O-RING,0.139" Thk x 2.234" ID, -228, Cl 6, 90 Duro

1шт.

4

73063363

RING

1шт.

5

73065105

PISTON

1шт.

6

73055125

SEAL,38.1mm ID x 54.08mm OD x 7.92mm Thk

1шт.

7

70931306

WASHER

1шт.

8

70921169

SCREW

1шт.

9

73065110

SEALING RING

1шт.

10

73132432

PISTON

1шт.

11

70923684

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

12

73065109

OIL SCRAPER RING

1шт.

13

73065106

BUSHING,38.2mm ID x 44.54mm OD x 50.8mm L

1шт.

14

73132430

PISTON

1шт.

15

73065112

SEAL KIT

Incl. 2, 3, 4, 6, 9, 11, 12

1шт.
