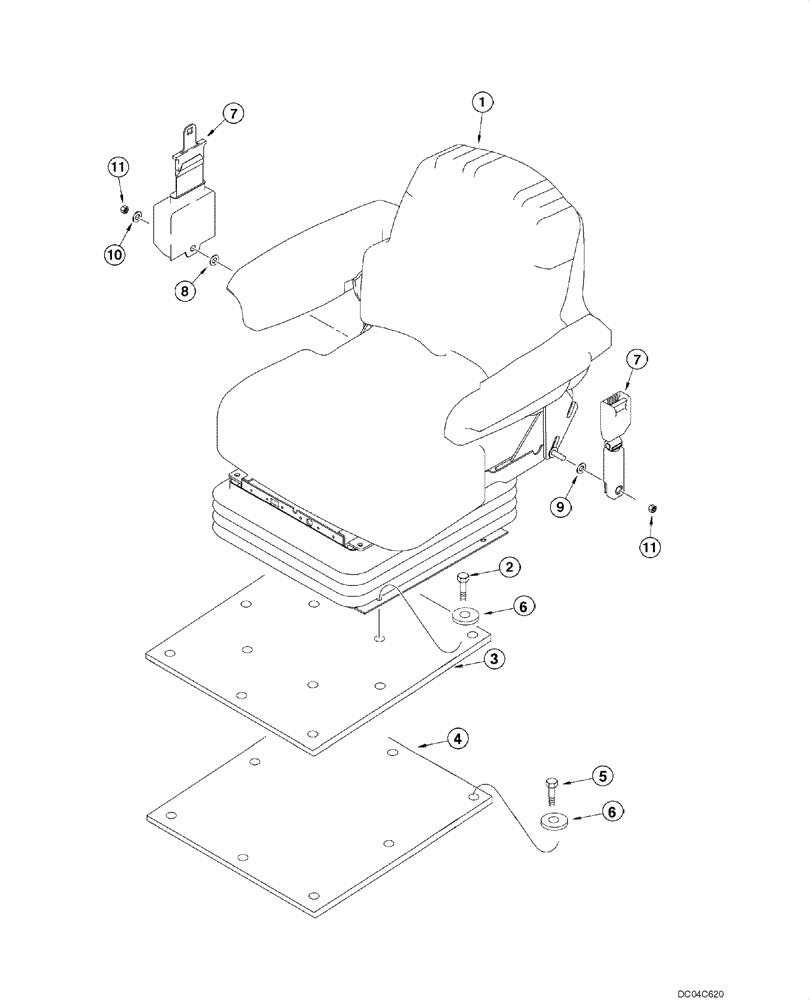

Запчасти Case 845 (09.55[00]) - SEAT - MOUNTING (09) - CHASSIS

1

399257A1

DRIVER SEAT

Fabric, See Figure 09.56

1шт.

1

399259A1

DRIVER SEAT

Suspension Option, See Figure 09.57B

1шт.

1

399261A1

DRIVER SEAT

Vinyl, See Figure 09.56

1шт.

2

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

4шт.

3

75257663

PLATE

Upper

1шт.

4

75281142

PLATE

Lower

1шт.

5

16043131

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

8шт.

6

12642021

WASHER

8шт.

Belt Safety 51mm (2in)

1шт.

7

249116A1

SAFETY BELT ,50.80 mm W

Includes 8-9

1шт.

8

NSS

NOT SOLD SEPARAT

Washer

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

10

495-11047

WASHER,7/16", SAE

1шт.

11

231-2447

LOCK NUT,7/16"-14, GB

2шт.

Belt Safety 76mm (3in)

1шт.

7

249117A1

SAFETY BELT ,76.20 mm W

Includes 8-9

1шт.

8

NSS

NOT SOLD SEPARAT

Washer

1шт.

9

NSS

NOT SOLD SEPARAT

Washer

1шт.

10

495-11047

WASHER,7/16", SAE

1шт.

11

231-2447

LOCK NUT,7/16"-14, GB

2шт.
