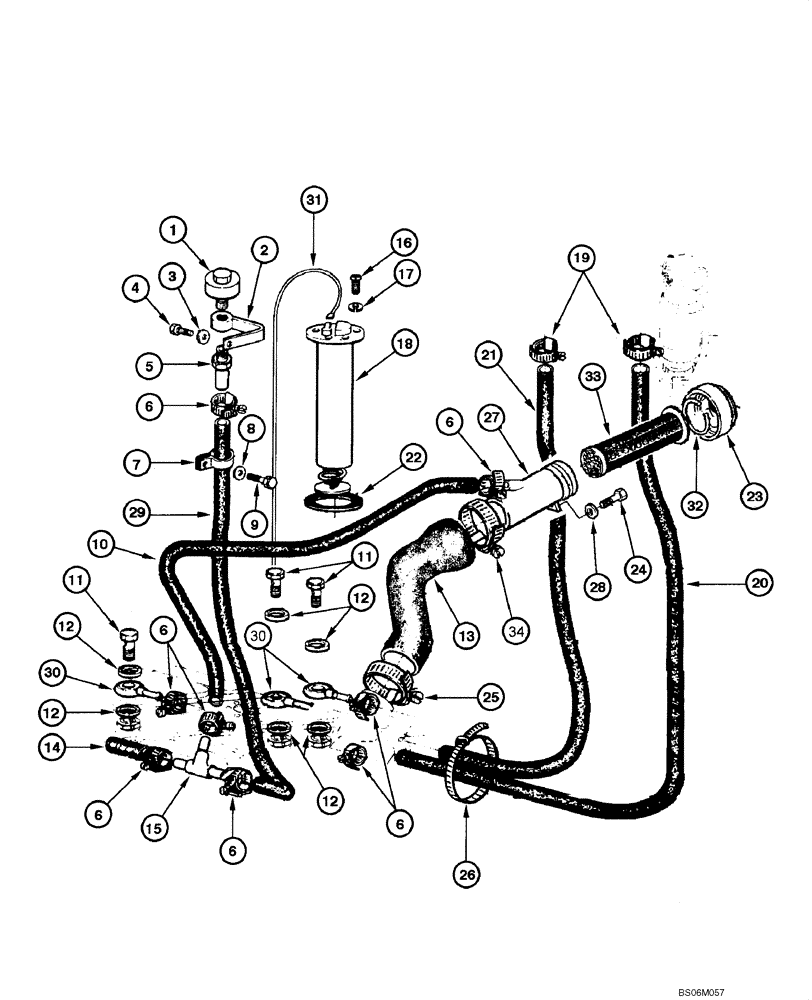

Запчасти Case 845 (03.04[00]) - FUEL LINE (03) - FUEL SYSTEM

1

70050748

BREATHER

1шт.

2

73153453

SUPPORT

1шт.

3

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

2шт.

4

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

1шт.

5

73153451

RIGID TUBE

1шт.

6

70921910

CLAMP

6шт.

7

70926049

CONNECTING BLOCK

1шт.

8

70677006

WASHER,10.31mm ID x 22.23mm OD x 4.76mm Thk

2шт.

9

11103031

BOLT,Hex, M10 x 18, 10.9, Full Thd

3шт.

10

73162469

HOSE

1шт.

11

10184317

BANJO BOLT,M14 x 1.5 x 27mm

3шт.

12

10279985

SEAL

6шт.

13

75321358

FUEL HOSE,76.30 mm ID, 105.30 mm ID x 426.30 mm

1шт.

14

73153814

HOSE

1шт.

15

73153450

HYD CONNECTOR

1шт.

16

13274211

SCREW,Pozidriv Pan Hd, M5 x 16mm, Cl 5.8, Full Thd

5шт.

17

11195479

LOCK WASHER

5шт.

18

75251139

FLOAT

1шт.

19

79084753

HOSE CLIP,M10-18

4шт.

20

75326414

FUEL HOSE,9.52mm ID x 2100mm L

1шт.

21

75326267

FUEL HOSE,9.65 mm ID x 1600.00 mm, SAE 30R1, SAE 30R6

1шт.

22

75288871

GASKET

1шт.

23

75284845

LOCKABLE FUEL CAP

1шт.

24

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

2шт.

25

70922200

CLAMP

4шт.

26

75201642

CLAMP

2шт.

27

75325670

TUBE ASSY.,234.4 mm Length

1шт.

28

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

2шт.

29

73153454

HOSE

1шт.

30

75252238

HYD CONNECTOR

3шт.

31

75253139

ELECTRIC CABLE

1шт.

32

4971843

CIRCLIP

1шт.

33

75325672

FILTER SCREEN

1шт.

34

70930425

CLAMP,4.31" - 4.62"

1шт.
