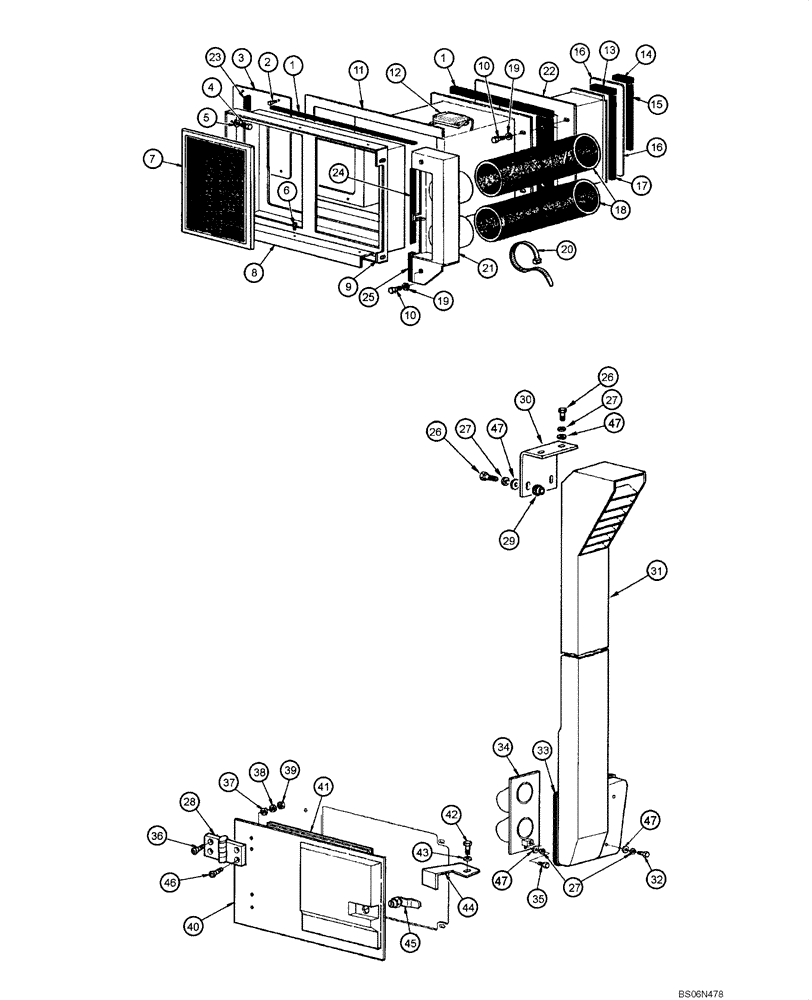

Запчасти Case 845 (09.48A[00]) - AIR CONDITIONING - INLET AIR FILTER (SN N4AF03020 - ) (09) - CHASSIS

1

75255052

GASKET

2шт.

2

15644101

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 16mm

4шт.

3

75254422

COVER

1шт.

4

10902030

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

4шт.

5

75254887

SUPPORT

4шт.

6

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

6шт.

7

75326979

ELEMENT

1шт.

8

15644101

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 16mm

2шт.

9

75326732

SUPPORT

1шт.

10

10902030

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

6шт.

11

75310737

AIR DUCT

Aspiration

1шт.

12

75289914

ACTUATOR

1шт.

13

75326915

SEAL RETAINER

1шт.

14

75326911

INSULATION,10mm W x 80mm L x 5mm Thk

1шт.

15

75326913

FOAM INSULATION,10mm W x 184mm L x 5mm Thk

1шт.

16

75326751

COVER

1шт.

17

75326914

INSULATION,10mm W x 83mm L x 5mm Thk

1шт.

18

75326564

FLEXIBLE HOSE

2шт.

19

10730101

WASHER,M6 x 12 OD x 1.5 Thk

6шт.

20

75201642

CLAMP

4шт.

21

75326757

DUCT

1шт.

22

75326755

BOX

Aspiration

1шт.

23

75254720

INSULATOR,10mm W x 315mm L x 5mm Thk

1шт.

24

75255212

GASKET,10mm W x 265mm L x 5mm Thk

1шт.

25

75254721

GASKET,10mm W x 52mm L x 5mm Thk

1шт.

26

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

27

10569371

LOCK WASHER

8шт.

28

75313357

HINGE

2шт.

29

79089658

PAD

2шт.

30

75254987

SUPPORT

1шт.

31

75326851

DUCT

Low Profile Cab

1шт.

31

75326854

DUCT

1шт.

32

16044131

BOLT,Hex, M8 x 45mm, Cl 10.9

2шт.

33

75326919

SEAL

1шт.

34

75326722

DUCT

2шт.

35

71101790

BOLT

3шт.

36

71101790

BOLT

3шт.

37

75313414

WASHER

4шт.

38

71101791

LOCK WASHER

4шт.

39

75310333

NUT

4шт.

40

75326963

FILTER COVER

1шт.

41

75313711

SEAL

1шт.

42

16043134

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

1шт.

43

10519601

WASHER,8.15mm ID x 17mm OD x 2mm Thk

1шт.

44

75326758

PLATE

1шт.

44

75327063

PLATE

For Machine Without Conditioner Air

1шт.

45

75313710

LOCK

1шт.

46

71101812

BOLT

4шт.

47

12642021

WASHER

8шт.
