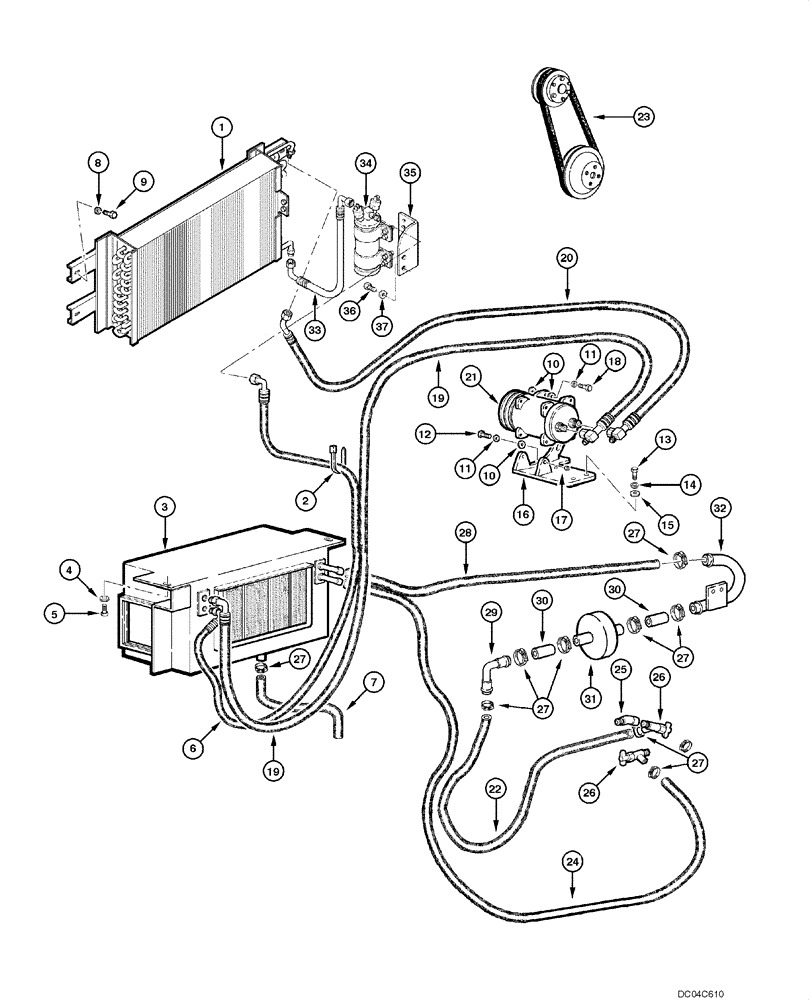

Запчасти Case 845 (09.45[00]) - AIR CONDITIONING - CIRCUIT AND ASSEMBLY (09) - CHASSIS

1

REF

INSTRUCTION

Condenser, See Figure 09.46

1шт.

2

13000990

COLLAR,60mm - 80mm, Worm Gear

2шт.

3

75254533

CONDENSER

1шт.

4

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

5

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

6

75257956

HOSE

1шт.

7

75255010

HOSE

1шт.

8

10615479

LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk

8шт.

9

10902021

BOLT,Hex, M6 x 12mm, Cl 8.8

8шт.

10

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

4шт.

11

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

3шт.

12

11343831

SCREW,Hex, M10 x 1.25 x 50mm, Cl 10.9

2шт.

13

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

3шт.

14

10516879

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

3шт.

15

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

3шт.

16

75323675

SUPPORT

1шт.

17

79114762

BUSHING,10.5mm ID x 16mm OD x 15mm L

1шт.

18

11343831

SCREW,Hex, M10 x 1.25 x 50mm, Cl 10.9

1шт.

19

75257954

HYDRAULIC HOSE

1шт.

20

75257955

HYDRAULIC HOSE

1шт.

21

75251988

AIRCOND. COMPRESSOR

1шт.

21

75251988R

REMAN-A/C COMPRESSOR

845 MOTOR GRADER TIER 2 BTW 020101-020187

1шт.

21

75251988C

CORE-A/C COMPRESSOR

Return Number

1шт.

22

75320969

HEATER HOSE,16.00 mm ID x 2020.00 mm

1шт.

23

75258258

BELT

1шт.

24

75320978

HOSE,15.88mm ID x 2700mm L

1шт.

25

70910149

ELBOW

1шт.

26

301803R1

SHUT-OFF VALVE

2шт.

27

195473C1

CLAMP

11шт.

28

75320965

HEATER HOSE,16.00 mm ID x 410.00 mm

1шт.

29

75322881

TUBE,52, 36 mm Length

1шт.

30

75321442

HEATER HOSE,15.50 mm ID x 50.00 mm

2шт.

31

1331087C1

HEATER VALVE

1шт.

32

75321436

TUBE,81, 60.5 mm Length

1шт.

33

75325658

HOSE

1шт.

34

REF

INSTRUCTION

Reservoir, See Figure 09.46

1шт.

35

75325588

BRACKET

1шт.

36

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

37

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.
