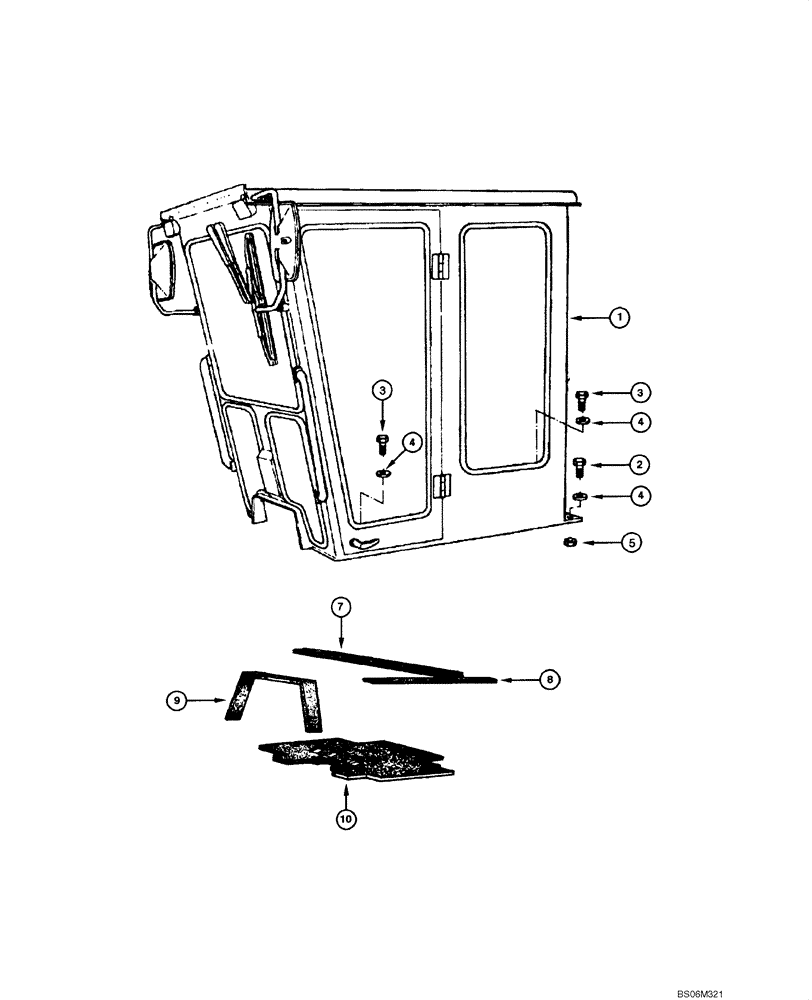

Запчасти Case 845 (09.27[00]) - CAB - ASSEMBLY (CLOSED CAB) (09) - CHASSIS

1

75257527

CAB

Std

1шт.

1

75264296

CAB

Std, Starting with SN N4AF03020

1шт.

1

75320293

CAB

Low Profile Option

1шт.

1

75264299

CAB

Low Profile Option, Starting with SN N4AF03020

1шт.

2

15224031

BOLT,Hex, M20 x 65mm, Cl 10.9, Full Thd

16шт.

3

11125731

BOLT,Hex, M20 x 100, 10.9

4шт.

4

79032222

WASHER,21mm ID x 40mm OD x 8mm Thk

20шт.

5

12577721

NUT,M20 x 2.5, Cl 10

20шт.

7

73150595

RUBBER STRIP

2шт.

8

73150566

FOAM INSULATION,30mm W x 845mm L x 9.5mm Thk

1шт.

9

73150598

SEALING STRIP

1шт.

10

75281000

FOOT BOARD

Front

1шт.

10

75264503

FLOOR MAT

Front, Starting with SN N5AF03040

1шт.
