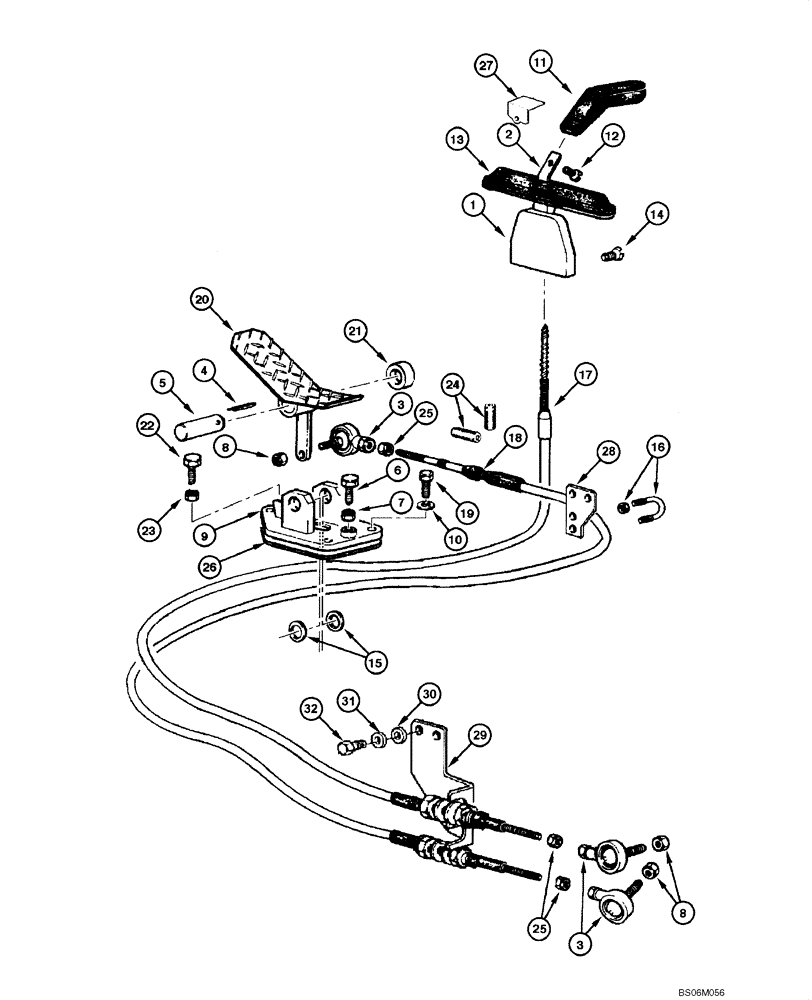

Запчасти Case 845 (03.01[00]) - THROTTLE AND LINKS (03) - FUEL SYSTEM

1

85802905

LEVER

Incl. 2

1шт.

2

75325718

LEVER

Rod

1шт.

3

70686384

BALL JOINT,1/4" - 28 x 1-1/3"

3шт.

4

70904002

COTTER PIN,1/8" x 2"

1шт.

5

73162359

AXLE,19.05mm OD x 64mm L

1шт.

6

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

1шт.

7

11702921

NUT,M12, Cl 10

1шт.

8

70916590

NUT

3шт.

9

75249975

SUPPORT

1шт.

10

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

3шт.

11

82002692

KNOB

1шт.

12

13275811

SCREW,Phil Pan Hd, M6 x 8mm

1шт.

13

85803380

BOOT

1шт.

14

10384511

SCREW,Slotted Countersunk, M5 x 30mm

4шт.

15

73121925

THRUST WASHER,19.05mm ID x 31.75mm OD x 0.81mm Thk

2шт.

16

75244191

CLAMP

1шт.

17

75251274

THROTTLE CONTROL

1шт.

18

75251275

THROTTLE CONTROL

1шт.

19

10903031

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

20

75256466

PEDAL

1шт.

21

73125852

NEEDLE BEARING

2шт.

22

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

1шт.

23

16100821

NUT,M8, Cl 10

1шт.

24

73160779

SLEEVE

2шт.

25

70911040

NUT

3шт.

26

75321578

RUBBER PEDAL PAD

1шт.

27

75323478

PLATE

1шт.

28

75326910

SUPPORT

Plate

1шт.

29

75326938

SUPPORT

Bracket

1шт.

30

12638501

WASHER,8.15mm ID x 15mm OD x 1.5mm Thk

4шт.

31

10516671

LOCK WASHER

4шт.

32

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.
