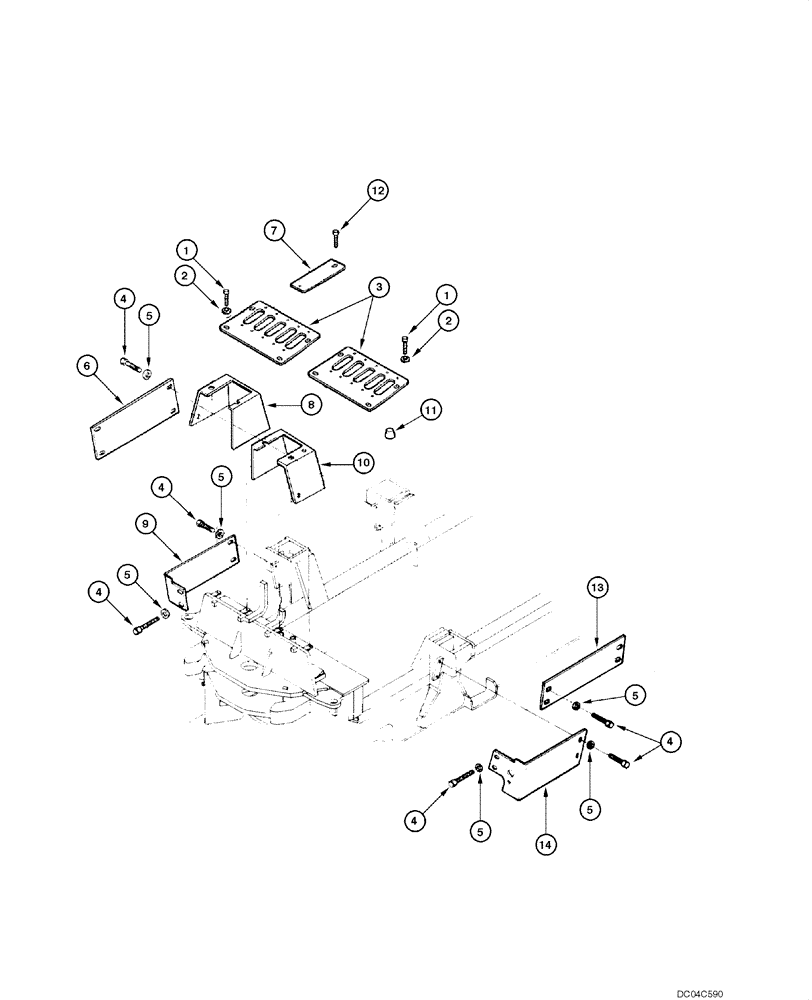

Запчасти Case 845 (09.25[00]) - PROTECTION PLATES - REAR CHASSIS (09) - CHASSIS

1

13276617

SCREW,Pozidriv Pan Hd, M6 x 25mm, Cl 5.8, Full Thd

10шт.

2

85801991

WASHER,6.3mm OD x 18mm ID x 4mm Thk

10шт.

3

75323391

PLATE

COVER

2шт.

4

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

29шт.

5

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

29шт.

6

75267257

PLATE

Guard, Right Hand

1шт.

7

75258109

COVER

1шт.

8

75324485

COVER

1шт.

9

75267210

INSPECTION DOOR

Cover

1шт.

10

75324484

COVER

1шт.

11

75320611

CAP

1шт.

12

15644101

SELF-TAP SCREW,Cross Pan Hd, M4.2 x 16mm

20шт.

13

75267222

PLATE

Cover, Left Hand

1шт.

14

75267215

PLATE

Cover

1шт.
