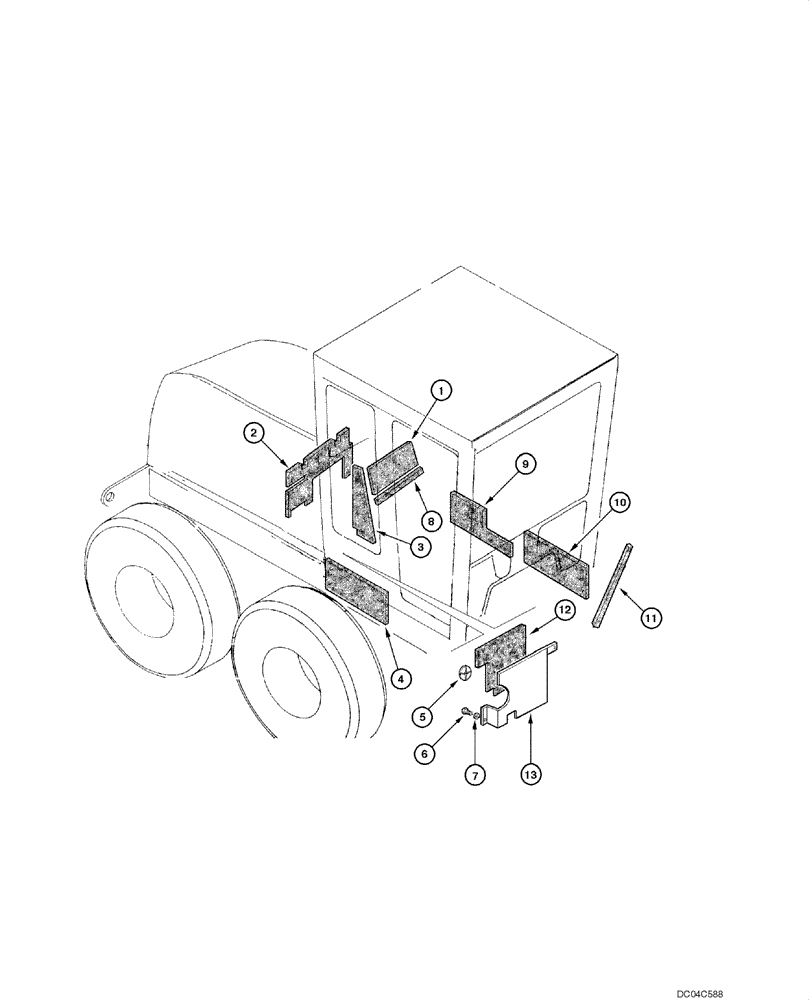

Запчасти Case 845 (09.23[00]) - NOISE INSULATOR - ENGINE HOOD (09) - CHASSIS

1

75260567

FOAM INSULATION

Sound Suppres

1шт.

2

75260564

FOAM INSULATION

Sound Suppres

1шт.

3

75257356

INSULATING PANEL

Sound Suppres, Right Hand

1шт.

3

75257355

INSULATING PANEL

Sound Suppres, Left Hand

1шт.

4

75258119

INSULATING PANEL

Sound Suppres, Left Hand

1шт.

5

75256034

CLIP

16шт.

6

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

6шт.

7

10730301

WASHER,8.15mm ID x 17mm OD x 2mm Thk

6шт.

8

75257354

INSULATING PANEL

Sound Suppres, Rear

1шт.

9

75257096

INSULATING PANEL

Sound Suppres, Right Hand

1шт.

10

75257095

INSULATING PANEL

Sound Suppres, Front

2шт.

11

71100480

RUBBER INSULATOR

INSULATOR

1шт.

12

75260566

FOAM INSULATION

Right Hand

1шт.

12

75260565

FOAM INSULATION

Left Hand

1шт.

13

75324686

PLATE

Right Hand

1шт.

13

75324687

PLATE

Left Hand

1шт.
