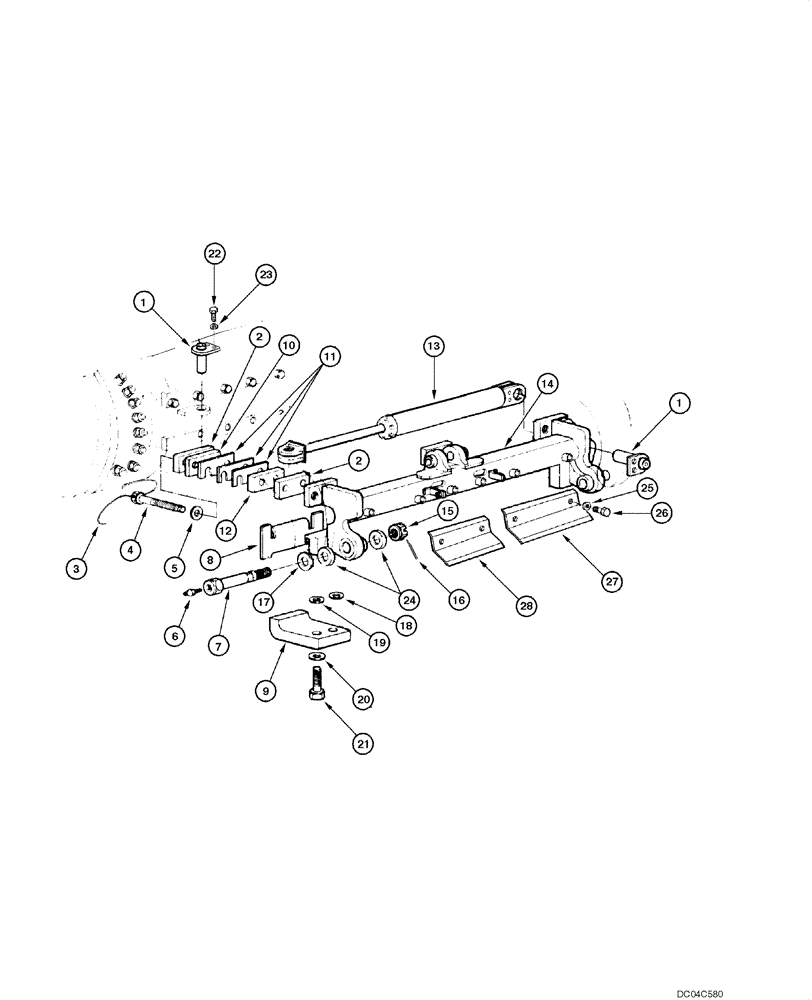

Запчасти Case 845 (09.15[00]) - BLADE - MECHANISM (09) - CHASSIS

1

75252844

DOWEL

2шт.

2

75248810

SPACER

6шт.

3

75241062

WIRE

3шт.

4

75250078

BOLT,Hex, M24 x 2 x 90mm, Cl 10.9

6шт.

5

14497331

WASHER,25mm ID x 44mm OD x 4mm Thk

M24 x 44 x 4

6шт.

6

70914465

LUBE NIPPLE

2шт.

7

75322606

BOLT,Hex, 1-3/4" - 12 x 7-1/2"

2шт.

8

75248807

PLATE

2шт.

9

75243732

SUPPORT

2шт.

10

75248811

SPACER

3шт.

11

75248809

SHIM,51.5mm OD x 0.8mm Thk

21шт.

12

75248808

SPACER

3шт.

13

REF

INSTRUCTION

Cylinder, Blade Shift, See Figure 08.55

1шт.

14

75267150

SUPPORT

Bracket

1шт.

15

70060670

NUT

2шт.

16

70901348

COTTER PIN

2шт.

17

70634237

WASHER,52.39mm ID x 82.55mm OD x 1.19mm Thk

1шт.

18

70915978

WASHER,1.03" ID x 1.62" OD x 0.03" Thk

20шт.

19

70928189

WASHER,1.06" ID x 1.75" OD x 0.09" Thk

4шт.

20

70928452

WASHER

4шт.

21

15997331

BOLT,Hex, M24 x 2 x 70mm, Cl 10.9, Full Thd

2шт.

22

11106121

BOLT,Hex, M10 x 1.5 x 22mm, Cl 8.8, Full Thd

4шт.

23

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

24

8288832

O-RING

4шт.

25

12648521

WASHER,12.2mm ID x 28mm OD x 4mm Thk

6шт.

26

11112131

SCREW,Hex, M12 x 20mm, Cl 10.9, Full Thd

6шт.

27

75267167

PLATE

Plate

2шт.

28

75267176

PLATE

Plate

1шт.
