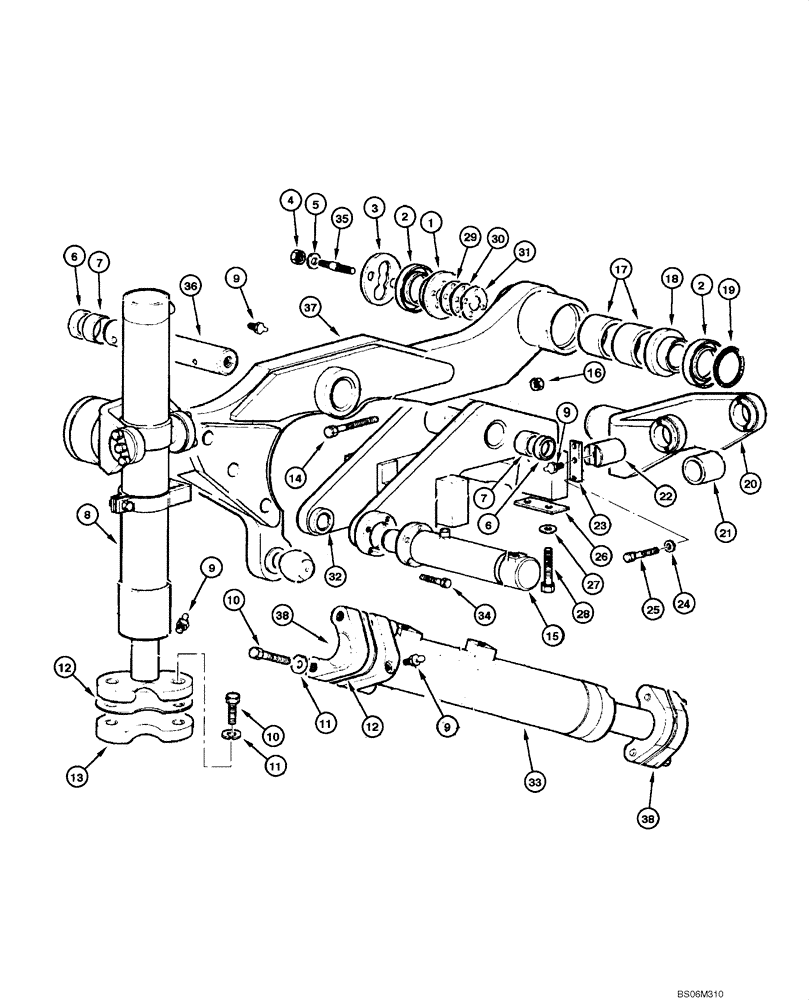

Запчасти Case 845 (08.62[00]) - CYLINDER - SADDLE AND ACTUATING (3 HOLES) (08) - HYDRAULICS

1

75267015

PLATE

2шт.

2

8291995

SEAL

4шт.

3

75248669

COVER

2шт.

4

70915972

NUT

8шт.

5

70931523

WASHER

8шт.

6

8291846

SEAL,70mm ID x 85mm OD x 7.5mm Thk

2шт.

7

79106797

BUSHING,70.21mm ID x 85.11mm OD x 58mm L

2шт.

8

REF

INSTRUCTION

Cylinder, See Figure 08.52

1шт.

9

70914465

LUBE NIPPLE

11шт.

10

70923137

SCREW

8шт.

11

70914726

LOCK WASHER

8шт.

12

70620920

SHIM,63.5mm OD x 0.38mm Thk

32шт.

13

75267024

COVER

Cover

2шт.

14

11114631

BOLT,Hex, M12 x 120, 10.9

1шт.

15

REF

INSTRUCTION

Cylinder, Saddle, See Figure 08.56

1шт.

16

10719321

NUT,M12 x 1.75, Cl 10

1шт.

17

79106797

BUSHING,70.21mm ID x 85.11mm OD x 58mm L

4шт.

18

75248663

RING

2шт.

19

70924686

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

2шт.

20

75267009

CLEVIS

Yoke

2шт.

21

73125404

BUSHING

4шт.

21

75327135

BUSHING,38mm ID x 47.83mm OD x 25.4mm L

(SN N5AF03141 - )

4шт.

22

73125400

PIN,37.87mm OD x 57.15mm L

4шт.

22

75327144

PIN,37.87mm OD x 57.2mm L

(SN N5AF03141 - )

4шт.

23

70607617

PIN,15.88mm OD x 76.2mm L

4шт.

23

75327453

PLATE

(SN N5AF03141 - )

4шт.

24

70910287

LOCK WASHER

12шт.

25

70923276

SCREW,Hex, 3/8" - 24 x 1", Gr 8

12шт.

26

73130333

SHIM,.06" Thk

2шт.

27

70928452

WASHER

8шт.

28

11398137

BOLT,Hex, M24 x 2 x 80mm, Cl 10.9

8шт.

29

75248665

SHIM

6шт.

30

75248666

SHIM

10шт.

31

75248667

SHIM

12шт.

32

75266988

SUPPORT

Bracket

1шт.

33

75220709

CYLINDER,Double Acting, 50mm Rod, 578mm Stroke

Cylinder, See Figure 08.54

1шт.

33

75220709R

REMAN-HYD CYLINDER

845 MOTOR GRADER TIER 2- BTW 020101-020187, Cylinder

1шт.

33

75220709C

CORE-HYD CYLINDER

Return Number

1шт.

34

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

35

75245603

STUD

8шт.

36

73162636

PIN,70mm OD x 264mm L

1шт.

37

75266998

SUPPORT

Bracket

1шт.

38

75267465

BRACKET

Cover

2шт.
