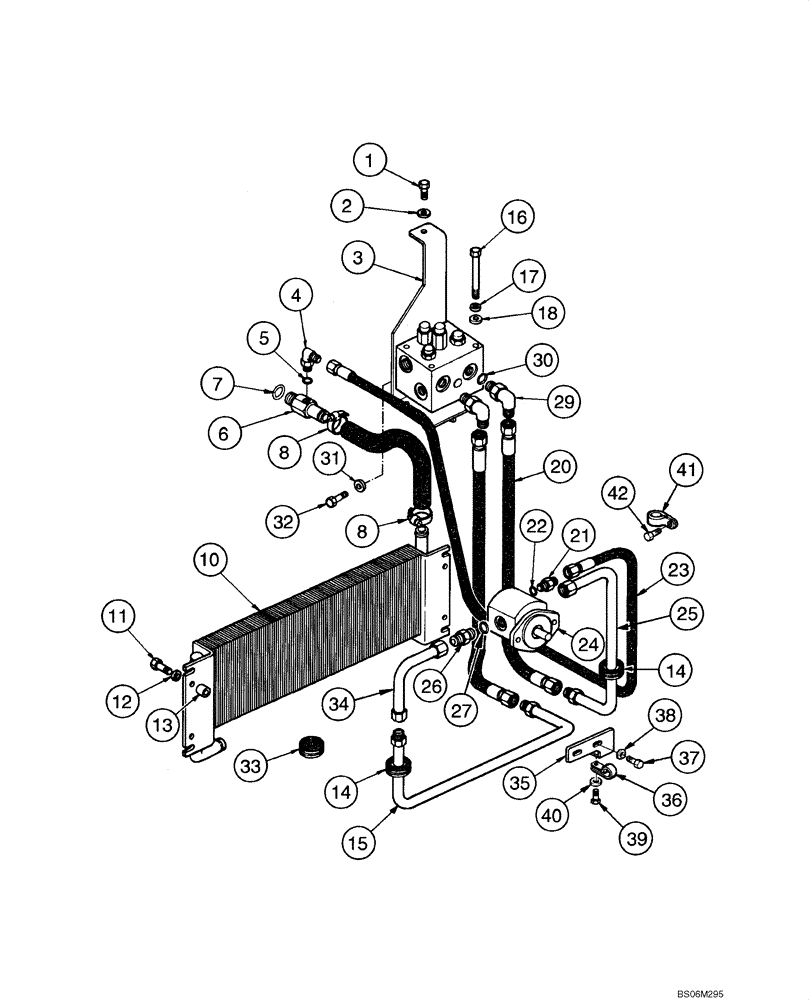

Запчасти Case 845 (08.29B[00]) - ENGINE COOLING - REVERSIBLE FAN HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

15219531

BOLT

1шт.

2

10520201

WASHER,16.4mm ID x 28mm OD x 3mm Thk

1шт.

3

75327641

SUPPORT

1шт.

4

70922523

ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 5

1шт.

5

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

6

75265333

FITTING

Incl. 7

1шт.

7

14438285

O-RING,29.5mm ID x 3.0mm

1шт.

8

70922660

CLAMP

2шт.

9

75327685

RADIATOR HOSE

1шт.

10

75324104

OIL COOLER

Radiator

1шт.

11

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

4шт.

12

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

13

75223894

SPACER,12.4mm ID x 16mm OD x 40mm L

4шт.

14

75327777

GROMMET

3шт.

15

87398120

TUBE,393, 210 mm L

1шт.

16

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

4шт.

17

10516679

LOCK WASHER,Helical Spring, 8.20mm ID x 14.80mm OD x 2.20mm, C72, ZNM

4шт.

18

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

4шт.

19

8500563

HYDRAULIC VALVE

1шт.

20

75325055

HOSE,19mm ID x 750mm L, SAE 100R2

2шт.

21

79066938

FITTING

1шт.

22

14437785

O-RING,11.3mm ID x 2.4mm

1шт.

23

75326973

HOSE ASSY.

1шт.

24

REF

INSTRUCTION

Hydraulic, Motor, See Figure 08-68A

1шт.

25

87398121

TUBE

1шт.

26

70921217

HYD CONNECTOR

Incl. 27

2шт.

27

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

28

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

1шт.

29

79067025

ELBOW

Incl. 30

2шт.

30

14457981

O-RING,1.049" ID x 0.103" Width

2шт.

31

14496531

WASHER,8.4mm ID x 17mm OD x 1.6mm Thk

2шт.

32

16043131

BOLT,Hex, M8 x 1.25 x 14mm, Cl 10.9, Full Thd

2шт.

33

14507887

PLUG,25mm ID, 39mm OD

1шт.

34

87398112

TUBE

1шт.

35

87398937

BRACKET

1шт.

36

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

2шт.

37

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

2шт.

38

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

2шт.

39

11106031

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

1шт.

40

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

41

70927155

CLIP

1шт.
