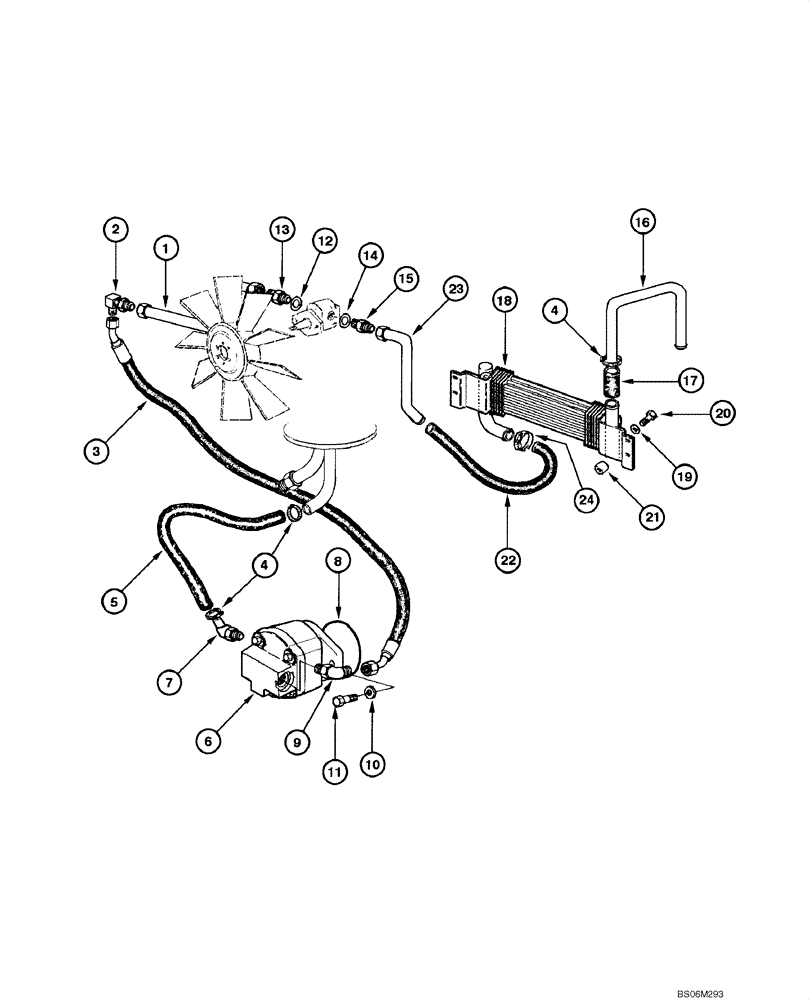

Запчасти Case 845 (08.29[00]) - ENGINE COOLING - FAN HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

73164380

PIPE,14 mm ID, 19 mm OD, 337, 150 mm Length

1шт.

2

75325032

HYD CONNECTOR

1шт.

3

75325055

HOSE,19mm ID x 750mm L, SAE 100R2

1шт.

4

214-2122

CLAMP,39.62mm - 45.97mm

8шт.

5

75325657

HYDRAULIC HOSE,32.00 mm ID x 390.00 mm, SAE 100R4

1шт.

6

REF

INSTRUCTION

Oil Pump, See Figure 08.30

1шт.

7

75323722

HYD CONNECTOR

1шт.

8

14466880

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

1шт.

9

70935989

HYD CONNECTOR

1шт.

10

10517071

LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk

2шт.

11

11112431

SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd

4шт.

12

70921214

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

13

70922997

ELEC CONNECTOR

1шт.

14

70921206

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

70923174

HYD CONNECTOR

1шт.

16

75324892

PIPE

1шт.

17

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

2шт.

18

75324104

OIL COOLER

1шт.

19

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

4шт.

20

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

4шт.

21

75223894

SPACER,12.4mm ID x 16mm OD x 40mm L

4шт.

22

75325497

HYDRAULIC HOSE,25.40 mm ID x 900.00 mm, SAE 100R3

1шт.

23

73164378

PIPE

1шт.

24

214-2114

CLAMP,35.56mm - 39.62mm

6шт.
