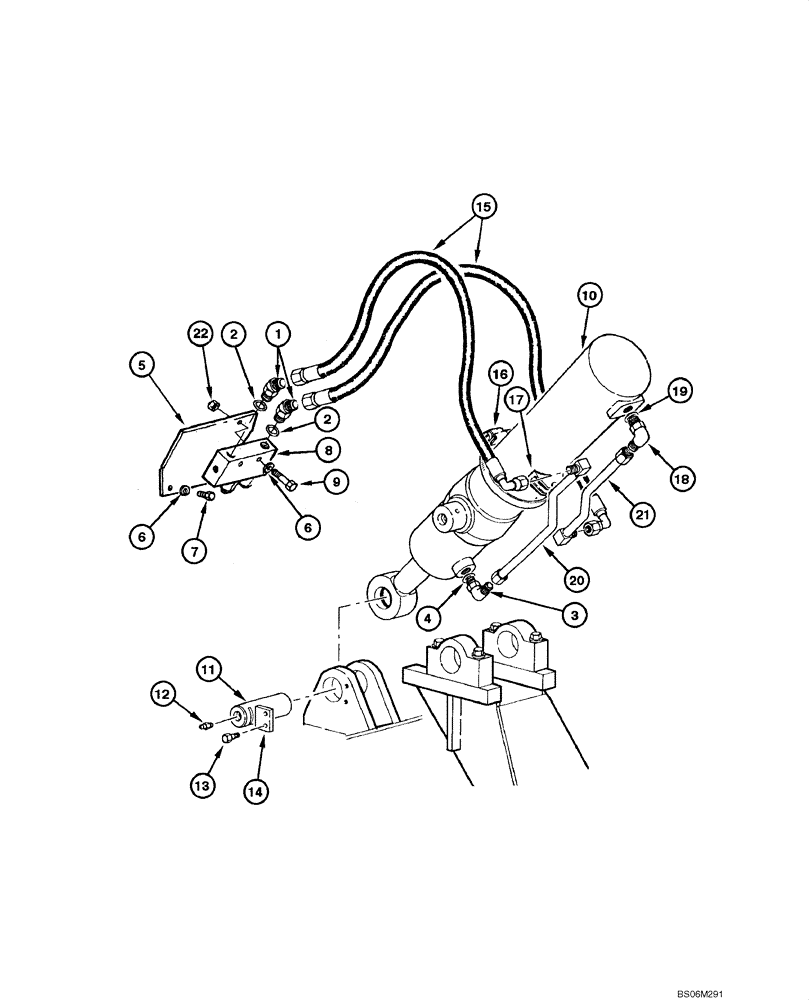

Запчасти Case 845 (08.28[00]) - RIPPER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

70922507

ELBOW

Incl. 2

2шт.

2

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

70930804

ELBOW

Incl. 4

1шт.

4

70921885

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

75252422

PLATE

2шт.

6

70630753

WASHER

4шт.

7

16043231

SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd

2шт.

8

REF

INSTRUCTION

Valve, See Figure 08.67

1шт.

9

11107331

SCREW,Hex, M10 x 55mm, Cl 10.9

2шт.

10

REF

INSTRUCTION

Cylinder, See Figure 08.59

1шт.

11

76002504

PIN,60mm OD x 170mm L

1шт.

12

13407211

LUBE NIPPLE,M10 x 1

1шт.

13

11113031

SCREW,Hex, M12 x 45mm, Cl 10.9, Full Thd

2шт.

14

8270126

PLATE

1шт.

15

73127637

FLEXIBLE HOSE

2шт.

16

79083855

HOSE CLIP,145mm - 180mm, Worm Gear

1шт.

17

83901828

SPACER,R8.4mm, R45mm

2шт.

18

70921402

ELBOW

1шт.

19

70921349

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

75252626

RIGID TUBE

1шт.

21

75252624

RIGID TUBE

1шт.

22

11701721

NUT,M10, Cl 10

2шт.
