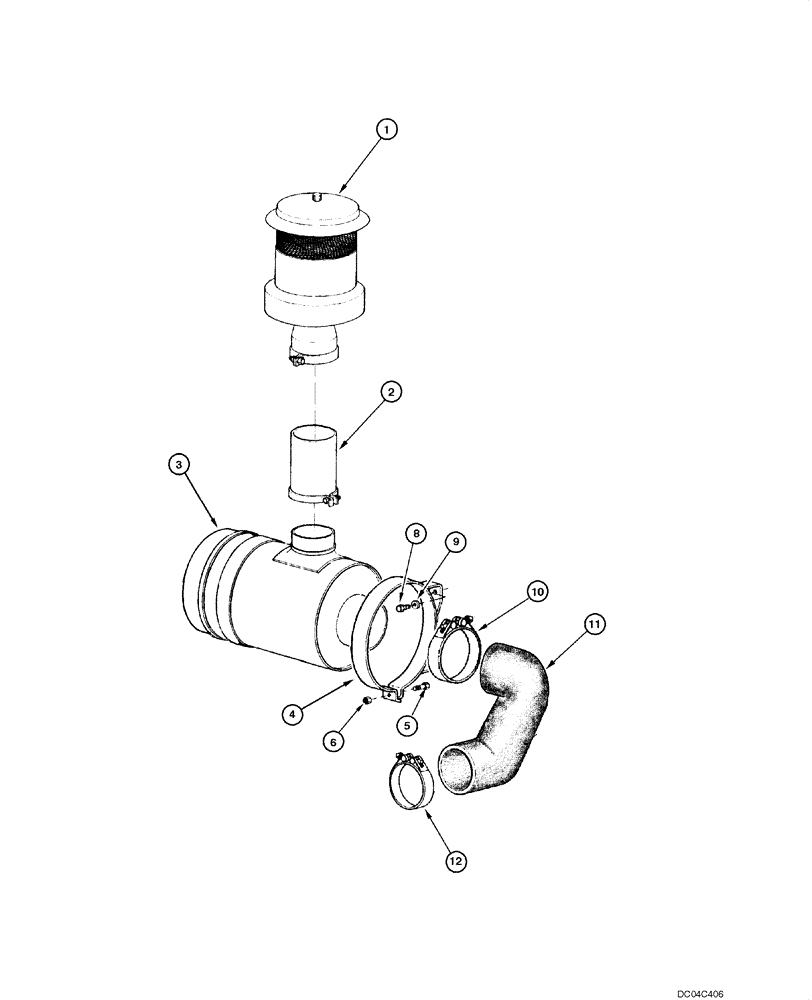

Запчасти Case 845 (02.07[00]) - AIR CLEANER - MOUNTING (02) - ENGINE

1

REF

INSTRUCTION

Pre-Filter Assy., See Figure 02.09

1шт.

2

75261230

TUBE

1шт.

REF

INSTRUCTION

Air Cleaner, See Figure 02.08A

1шт.

4

75312870

CLAMP

Incl. 5 - 6

1шт.

5

16044331

SCREW,Hex, M8 x 1.25 x 55mm, Cl 10.9

1шт.

6

16100821

NUT,M8, Cl 10

2шт.

8

11106431

SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4шт.

9

10516873

WASHER

4шт.

10

L127771

CLAMP,107.95mm - 130.18mm

1шт.

11

75323874

HOSE

1шт.

12

70929419

CLAMP

1шт.
