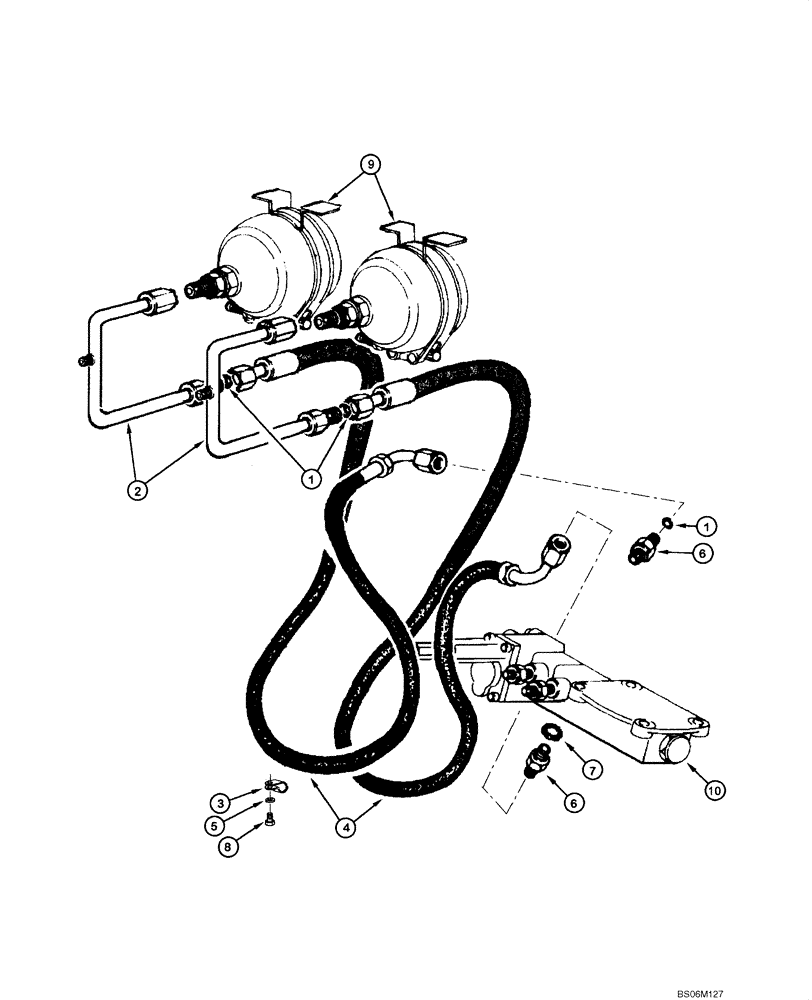

Запчасти Case 845 (07.08[00]) - EMERGENCY BRAKE - ASSEMBLY (07) - BRAKES

1

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

2

75253784

RIGID TUBE

2шт.

3

70925617

CLAMP

1шт.

4

75252441

FLEXIBLE HOSE

2шт.

5

12645031

WASHER,8.45mm ID x 21mm OD x 3mm Thk

1шт.

6

75239803

LUBE NIPPLE

Incl. 7

2шт.

7

14438085

O-RING,19.3mm ID x 2.4mm

2шт.

8

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

1шт.

9

REF

INSTRUCTION

Hydraulic Accumulator, See Figure 07.09

1шт.

10

REF

INSTRUCTION

Brake Booster, See Figure 07.05

1шт.
