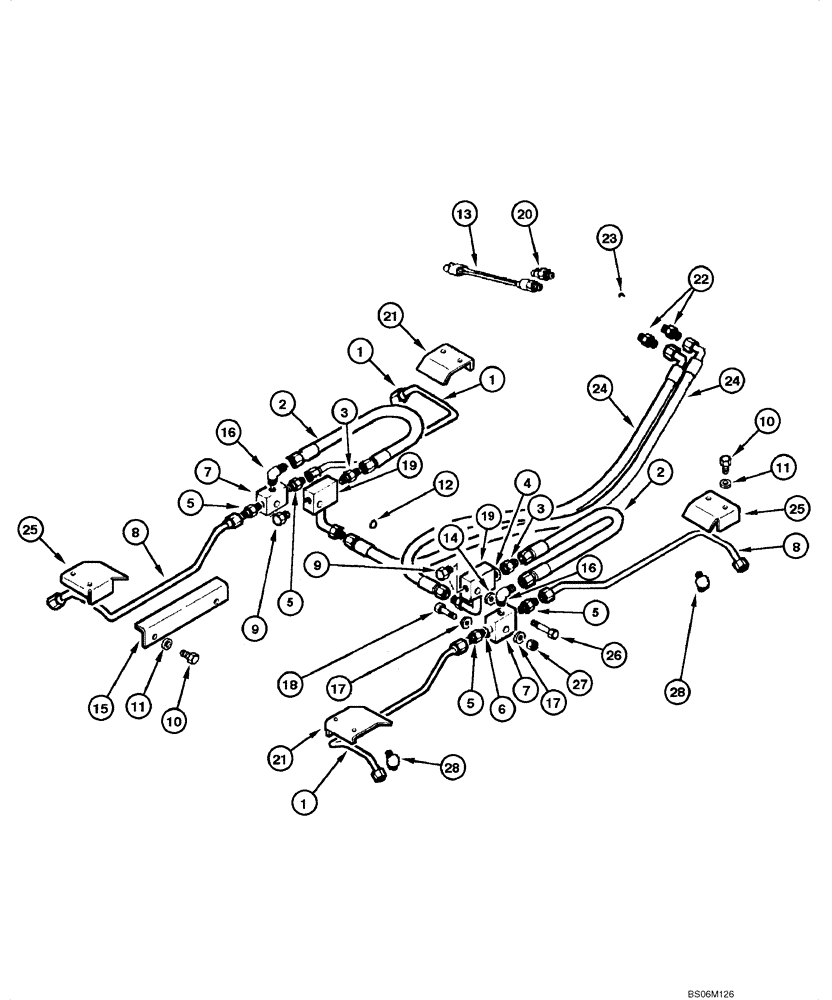

Запчасти Case 845 (07.07[00]) - BRAKE HYDRAULIC CIRCUIT (DANA) (07) - BRAKES

1

75252410

RIGID TUBE

2шт.

2

75251152

FLEXIBLE HOSE

2шт.

3

70919062

HYD CONNECTOR

2шт.

4

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

5

79066938

FITTING

4шт.

6

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

7

75244490

LUBE NIPPLE

2шт.

8

75252411

RIGID TUBE

2шт.

9

70901652

PLUG

2шт.

10

16043431

SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd

20шт.

11

10519621

WASHER,8.15mm ID x 17mm OD x 2mm Thk

20шт.

12

70923841

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

13

75254572

SWITCH

1шт.

14

10516871

LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk

4шт.

15

75252416

GUARD

4шт.

16

70922523

ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

2шт.

17

14496621

WASHER,10.5mm ID x 21mm OD x 2mm Thk

2шт.

18

11107031

BOLT,Hex, M10 x 45mm, Cl 10.9

2шт.

19

75252406

HYDRAULIC VALVE

2шт.

20

70094334

LIGHT SWITCH

1шт.

21

75252414

GUARD

1шт.

22

75239803

LUBE NIPPLE

2шт.

23

14437785

O-RING,11.3mm ID x 2.4mm

2шт.

24

75241267

FLEXIBLE HOSE

2шт.

25

75252415

GUARD

1шт.

26

11106631

SCREW,Hex, M10 x 35mm, Cl 10.9, Full Thd

2шт.

27

15500121

NUT

2шт.

28

70967050

ELBOW

4шт.
