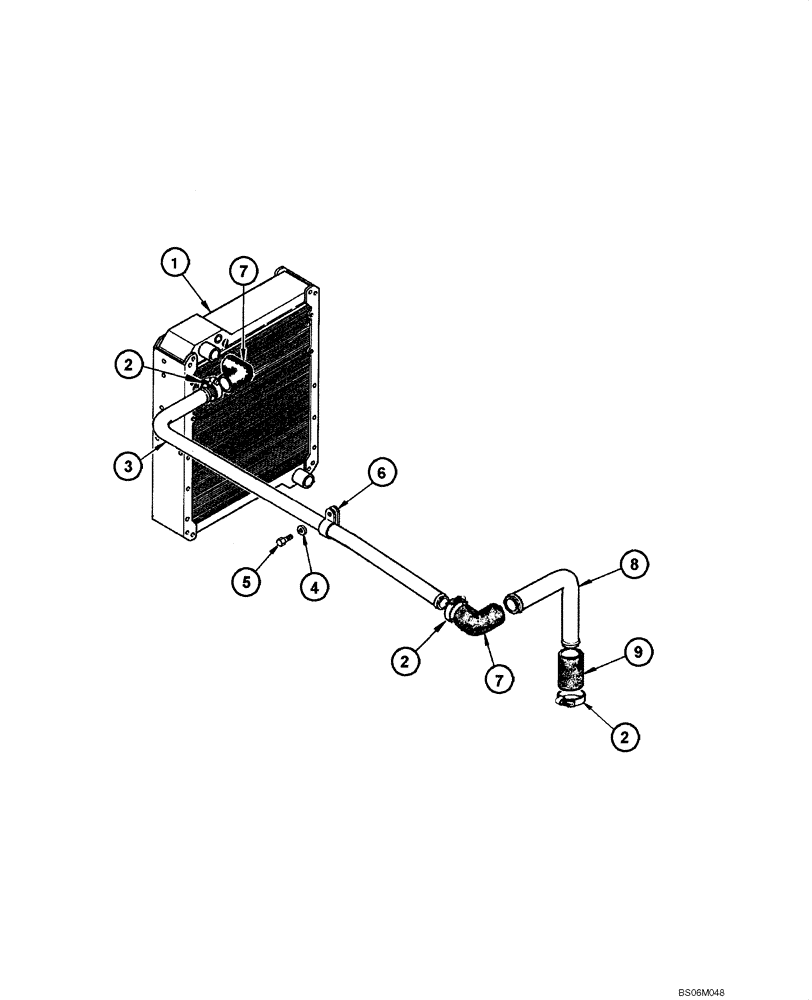

Запчасти Case 845 (02.04[00]) - COOLING SYSTEM - ENGINE (02) - ENGINE

1

REF

INSTRUCTION

Radiator, See Figure 02.02

1шт.

2

70921914

CLAMP

5шт.

3

75324846

PIPE

1шт.

4

12646704

WASHER,8.15mm ID x 20mm OD x 2mm Thk

2шт.

5

16043631

SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd

2шт.

6

70928439

CLAMP

2шт.

7

75320219

RADIATOR HOSE,57.00 mm ID x 100.00 mm, SAE J 20R4-DI

2шт.

8

75324938

PIPE

1шт.

9

73031151

HOSE

1шт.
