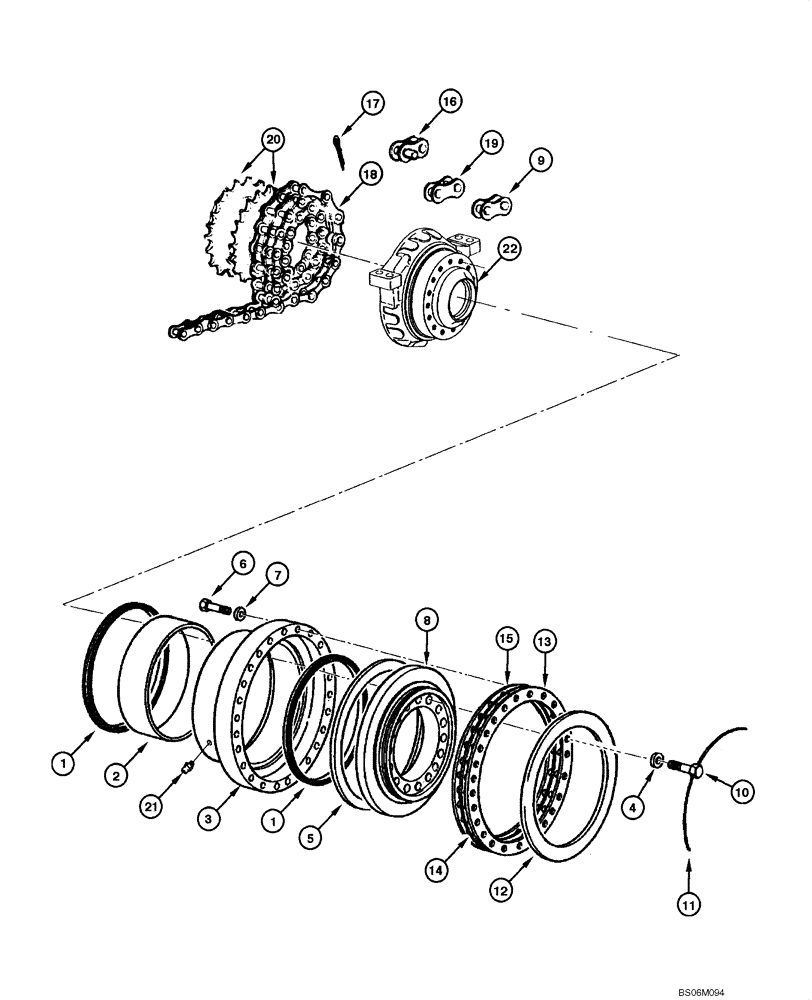

Запчасти Case 845 (06.37[00]) - TANDEM - INTERMEDIATE BEARING (FOR GRAZIANO AXLE) (06) - POWER TRAIN

1

73155118

SEAL

4шт.

2

75246450

BUSHING,350mm ID x 362.5mm OD x 80mm L

2шт.

3

75266759

FLANGE

Hub

2шт.

4

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

32шт.

5

75253782

RING,380mm ID x 440mm OD x 3mm Thk

2шт.

6

15981231

BOLT,Hex, M16 x 1.5 x 65mm, Cl 10.9

48шт.

7

10517271

LOCK WASHER,16.2mm ID x 27.7mm OD x 4mm Thk

48шт.

8

75258149

COVER

2шт.

9

70605578

LINK,Chain, 50.8mm Pitch

Roller Link

1шт.

10

73161800

BOLT,Hex, M20 x 1.5 x 70mm, Cl 10.9

48шт.

11

70052519

WIRE

2шт.

12

73155650

RING,363mm ID x 440mm OD x 3mm Thk

2шт.

13

75325418

SHIM,444mm ID x 502mm OD x 0.45mm Thk

14шт.

14

75325420

SHIM,444mm ID x 502mm OD x 0.15mm Thk

4шт.

15

75325419

SHIM,444mm ID x 502mm OD x 0.18mm Thk

4шт.

16

70605508

LINK,50.8mm Pitch

1шт.

17

73151154

COTTER PIN

1шт.

18

75241029

CHAIN

ASSY; Incl. Ref 9, 16, 17, 19

4шт.

19

70605507

LINK,50.8mm Pitch

Offset Link

1шт.

20

75289029

GEAR

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

4шт.

22

REF

INSTRUCTION

Housing, See Figure 06.27

1шт.
