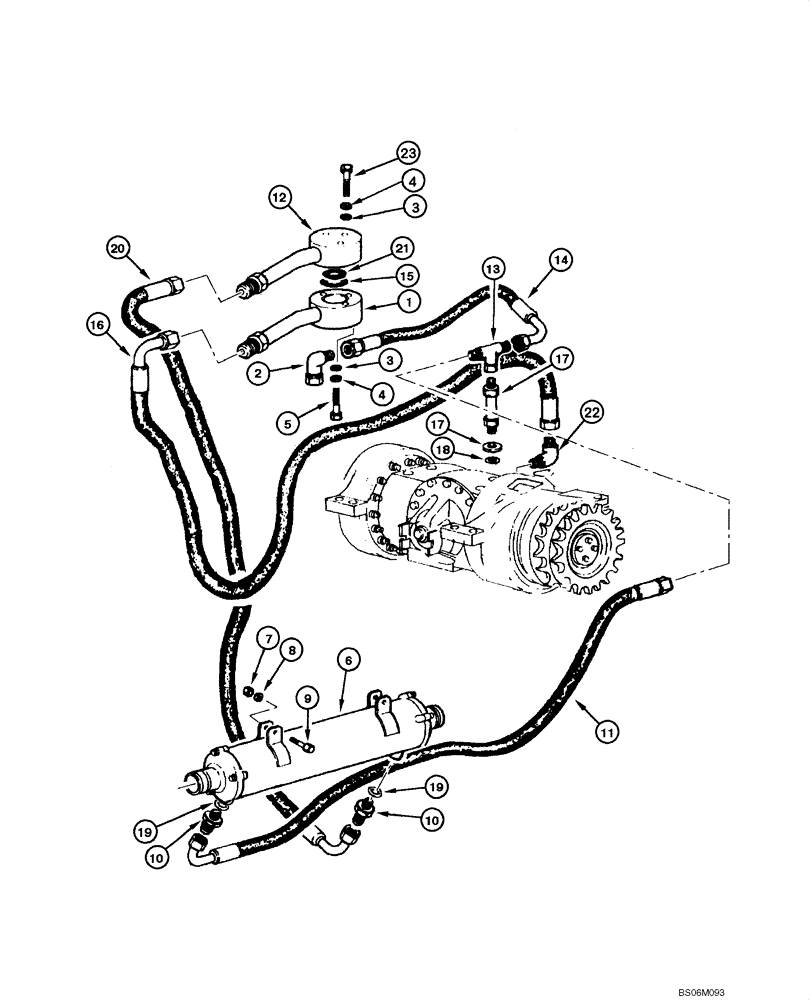

Запчасти Case 845 (06.35[00]) - REAR AXLE GRAZIANO - OIL COOLING (06) - POWER TRAIN

1

75265130

FITTING,1-5/16" - 12

1шт.

2

70921279

ELBOW

1шт.

3

14496431

WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk

3шт.

4

10516473

WASHER

3шт.

5

10903031

BOLT,Hex, M6 x 35mm, Cl 10.9

3шт.

6

REF

INSTRUCTION

Oil Radiator, See Figure 06.36

1шт.

7

11701721

NUT,M10, Cl 10

2шт.

8

10516873

WASHER

2шт.

9

11107631

SCREW,Hex, M10 x 70mm, Cl 10.9

2шт.

10

75252993

HYD CONNECTOR

2шт.

11

75252543

FLEXIBLE HOSE

1шт.

12

75253556

TUBE

1шт.

13

70921276

HYD CONNECTOR

1шт.

14

75252544

FLEXIBLE HOSE

1шт.

15

14457680

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

1шт.

16

73155805

HOSE,22.22mm ID x 940mm L

1шт.

17

75253076

HYD CONNECTOR

Incl. 18

1шт.

18

14437885

O-RING,13.30mm ID x 2.40mm

1шт.

19

73136636

COPPER WASHER,26.3mm ID x 38mm OD x 5mm Thk

2шт.

20

75252541

FLEXIBLE HOSE

1шт.

21

14457280

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

22

70924026

ELBOW

1шт.

23

10903431

BOLT,Hex, M6 x 45mm, Cl 10.9

1шт.
